Secondary Speed Sensor (QR25DE): Components

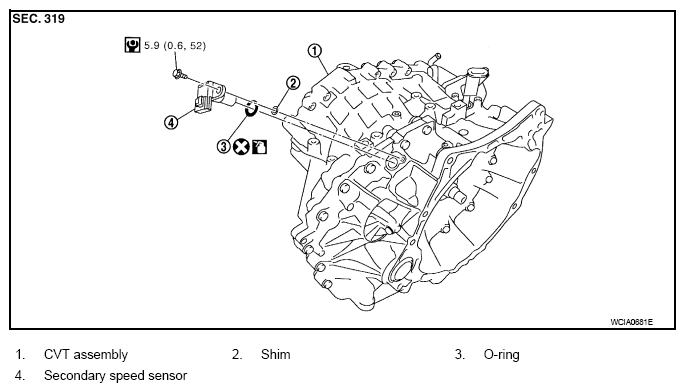

Fig 1: Identifying Secondary Speed Sensor Replacement Components With Torque Specifications (QR25DE)

G08180853

Courtesy of NISSAN NORTH AMERICA, INC.
