Oil Pump Fitting Bolt: Components

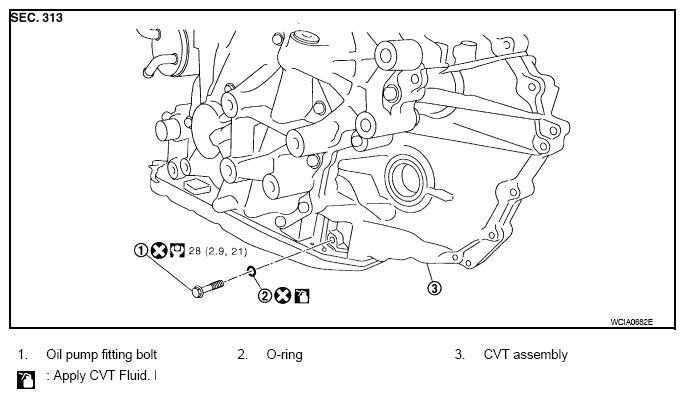

Fig 1: Identifying Oil Pump Fitting Bolt Replacement Components With Torque Specification
G08180856Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Replace the oil pump fitting bolt and the O-ring if oil leaks or exudes from the oil pump fitting bolt.
