Shift Lock System Electrical Parts Location

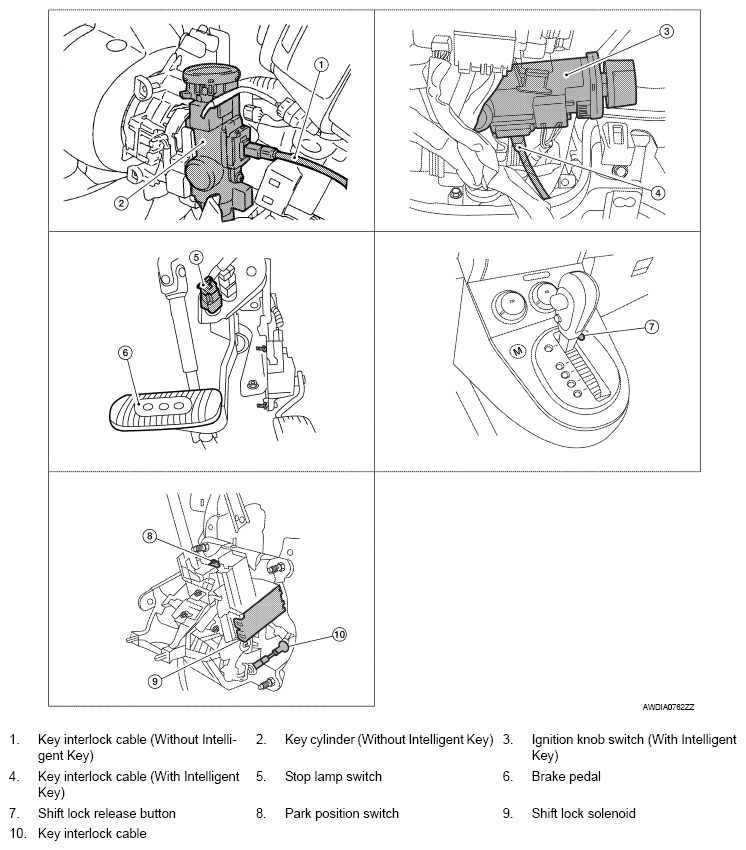

Fig 1: Identifying Shift Lock System Electrical Parts Location

G08180804

Courtesy of NISSAN NORTH AMERICA, INC.
