Rear Suspension Assembly: Component

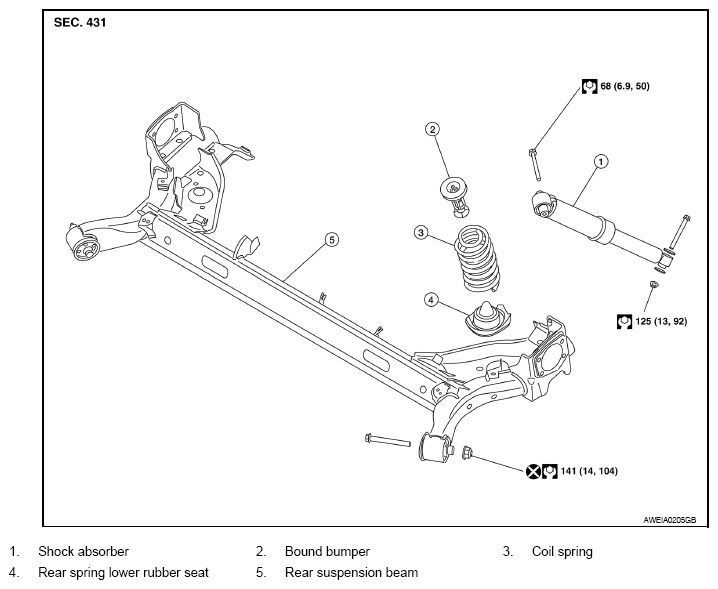

Fig 1: Exploded View Of Rear Suspension Assembly Components With Torque Specifications

G08180283

Courtesy of NISSAN NORTH AMERICA, INC.
