Removal and Installation: Notes

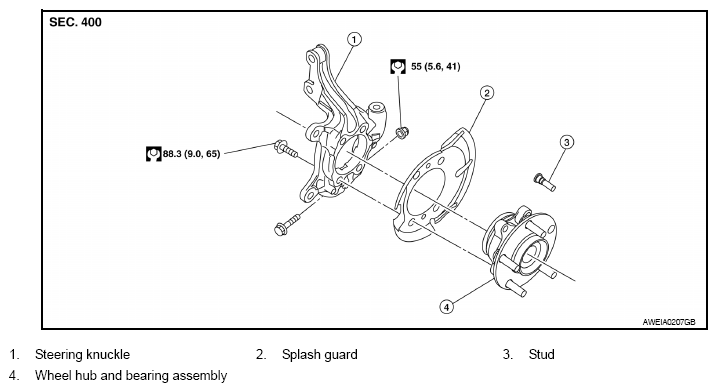

Fig 1: Dissembled View Steering Knuckle With Torque Specifications

G08180276

Courtesy of NISSAN NORTH AMERICA, INC.
