Maintenance Service Reminder Reset - Procedure 04
NOTE:
This procedure is for the Vehicle Information Display (center of the instrument cluster).
Maintenance intervals shown in the Vehicle Information Display are reset using the INFO knob.

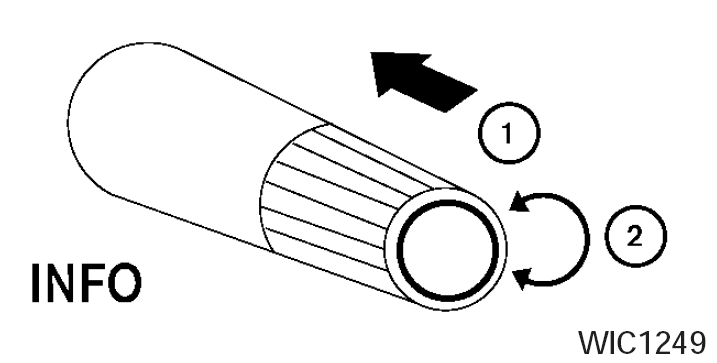

Press the vehicle information display INFO knob (Fig 1), located on the instrument panel (lower right of the speedometer) to toggle through the following menus:
MPG > MPG/MPH > Time/Miles > Range > Setting > Warning
Rotate the INFO knob to highlight the desired menu option within the selected mode. Press the knob to enter the highlighted menu. The icons at the bottom of the display screen show the actions available.
For Maintenance Reminder adjustments, use the Setting > Maintenance menu. In the setting menu, rotate the INFO knob to move to MAINTENANCE and press the knob to select the menu. See SETTING MODE in Fig 2.
- Reset Mode: Reset mode can be selected in any screen that allows for preferences to be programmed. Once the screen is selected, you have the option to reset their selected distances or time to a new setting. See RESET MODE in Fig 2.
- Maintenance Mode: Maintenance mode allows you to set reminders of maintenance intervals for the following: Engine Oil, Oil Filter, Tires, Other . See MAINTENANCE MODE in Fig 2.
