Shift Control Components

WARNING: This page is about a different variant/trim than selected.

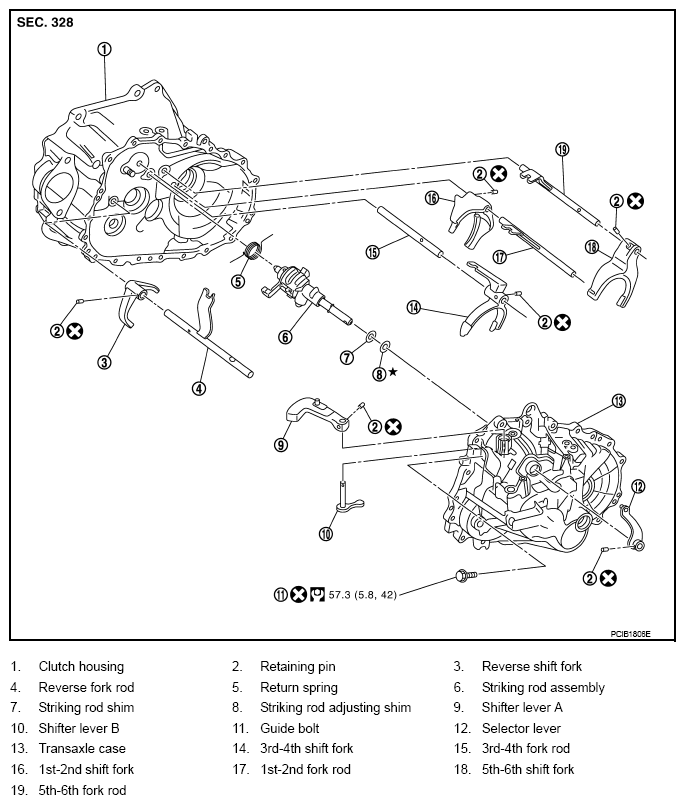

Fig 1: Disassembled View Of Transaxle Assembly Shift Control Components With Torque Specification
G08179992Courtesy of NISSAN NORTH AMERICA, INC.
