Section 7 (Manual Transmission (RS6F52H))
>>
Service Information
>>
Transaxle Assembly
>>
Disassembly and Assembly
>>
Components
>>
Final Drive Components
Final Drive Components
WARNING:
This page is about a different variant/trim than selected.

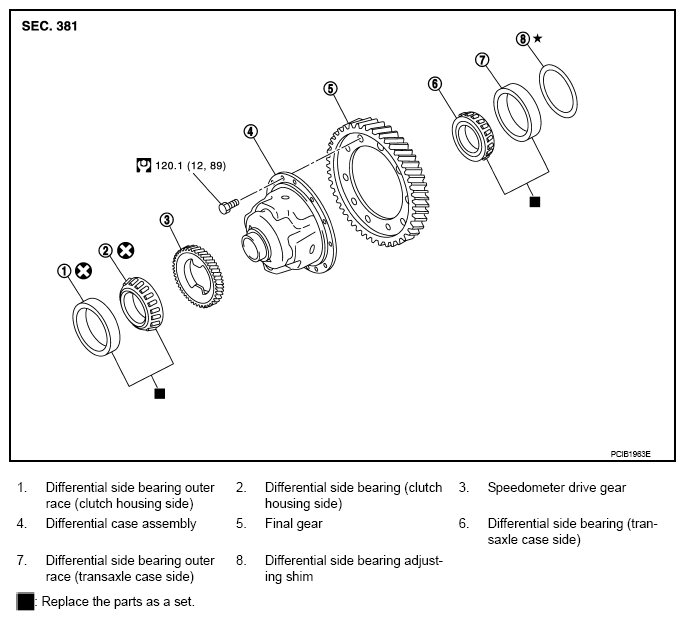

Fig 1: Disassembled View Of Transaxle Assembly Final Drive Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
