System - Engine Mechanical & Other

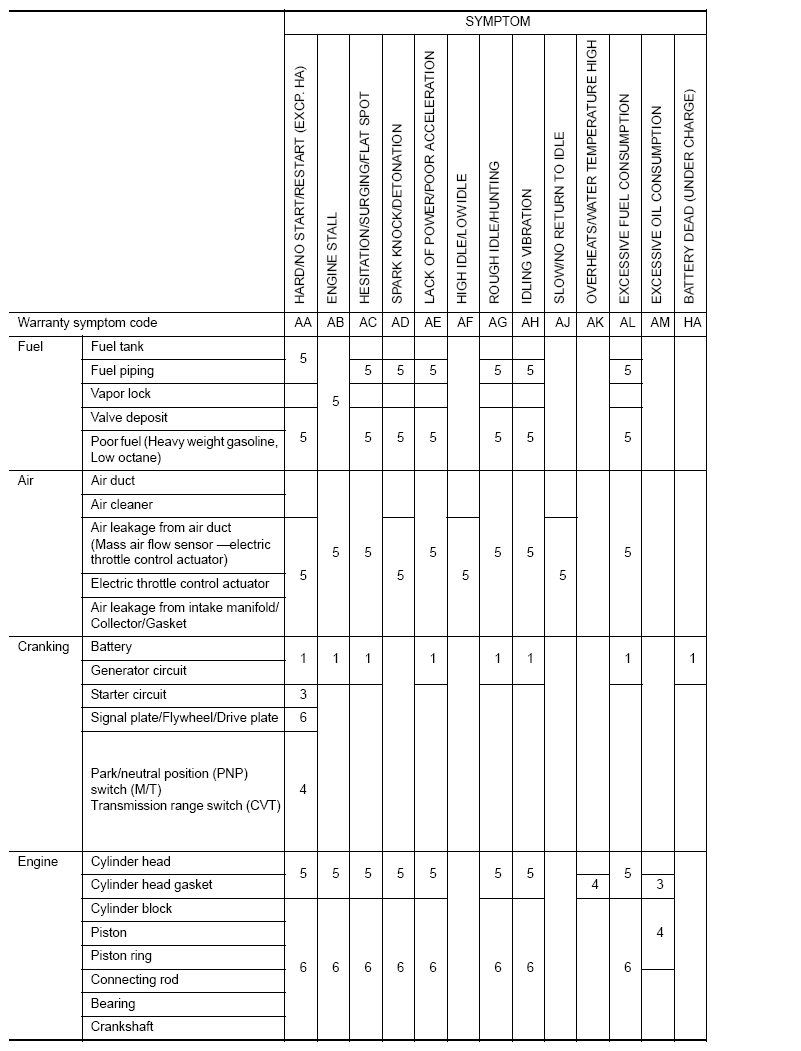

Fig 1: Engine Mechanical And Other System Symptom Matrix Chart (1 Of 2)
G08184973Courtesy of NISSAN NORTH AMERICA, INC.

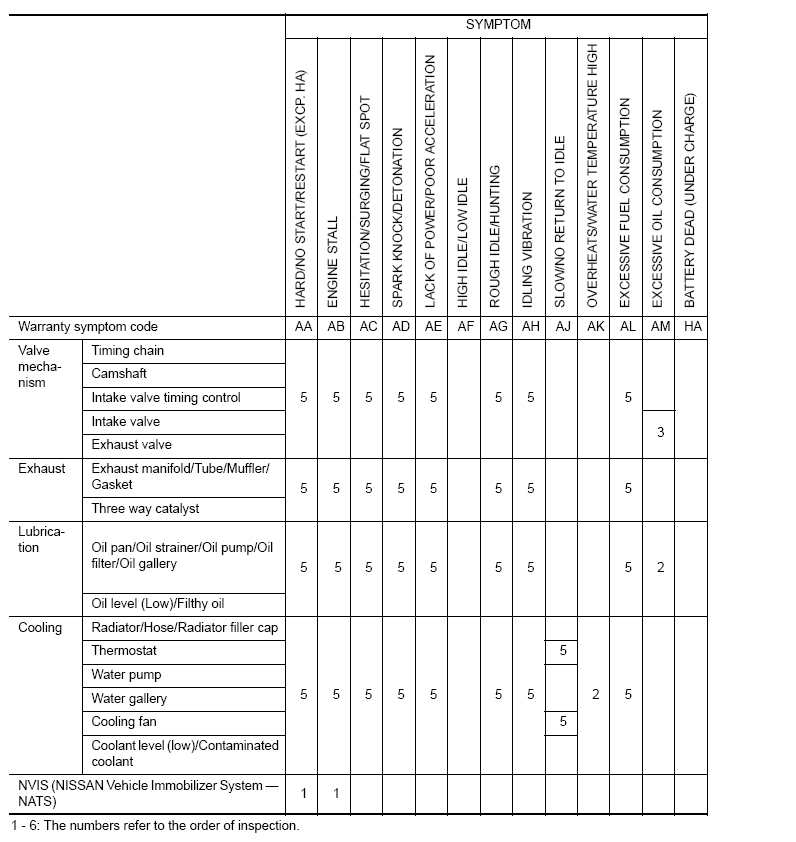

Fig 2: Engine Mechanical And Other System Symptom Matrix Chart (2 Of 2)
G08184974Courtesy of NISSAN NORTH AMERICA, INC.
