Home >> Nissan-Datsun >> 2012 >> Sentra SE-R >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Qr25DE) >> Service Information >> Spark Plug >> Removal and Installation >> Notes

Removal and Installation: Notes

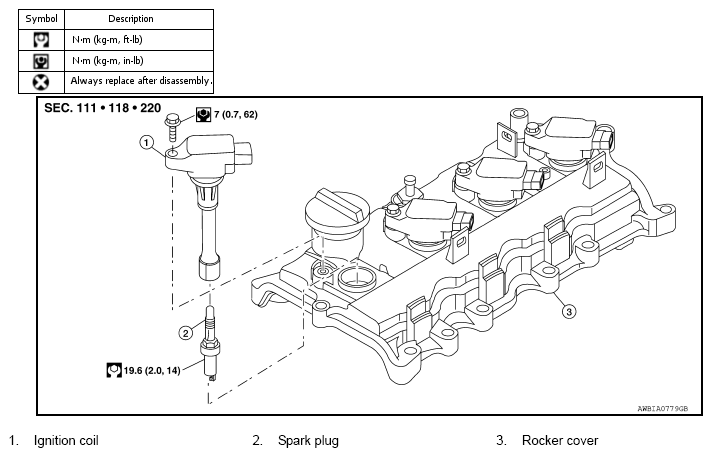

Fig 1: Exploded View Of Spark Plug With Torque Specifications

G08503018

Courtesy of NISSAN NORTH AMERICA, INC.
