Home >> Nissan-Datsun >> 2012 >> Sentra SE-R >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Qr25DE) >> Service Information >> Intake Manifold >> Removal and Installation >> Notes

Removal and Installation: Notes

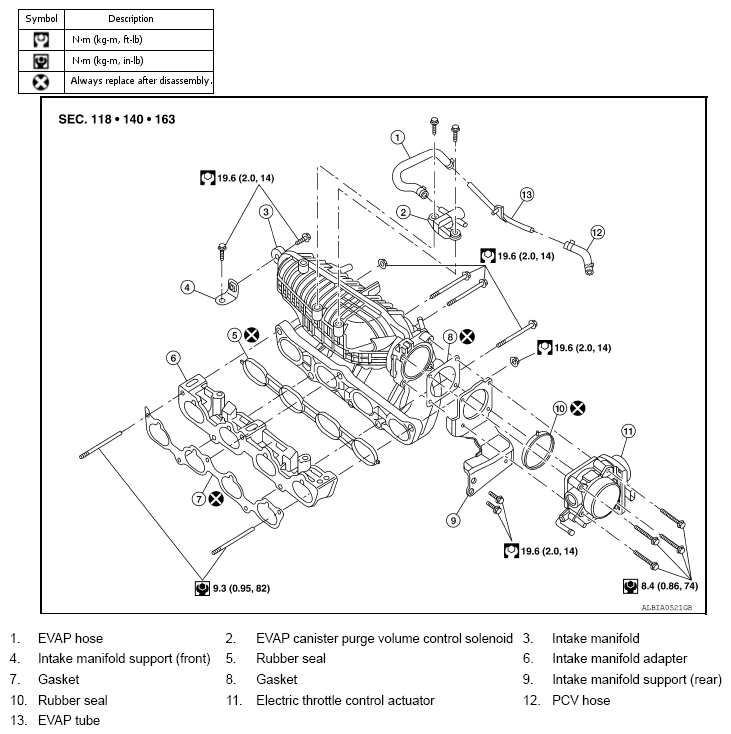

Fig 1: Exploded View Of Intake Manifold With Torque Specifications

G08502993

Courtesy of NISSAN NORTH AMERICA, INC.
