Lubrication System: Schematic

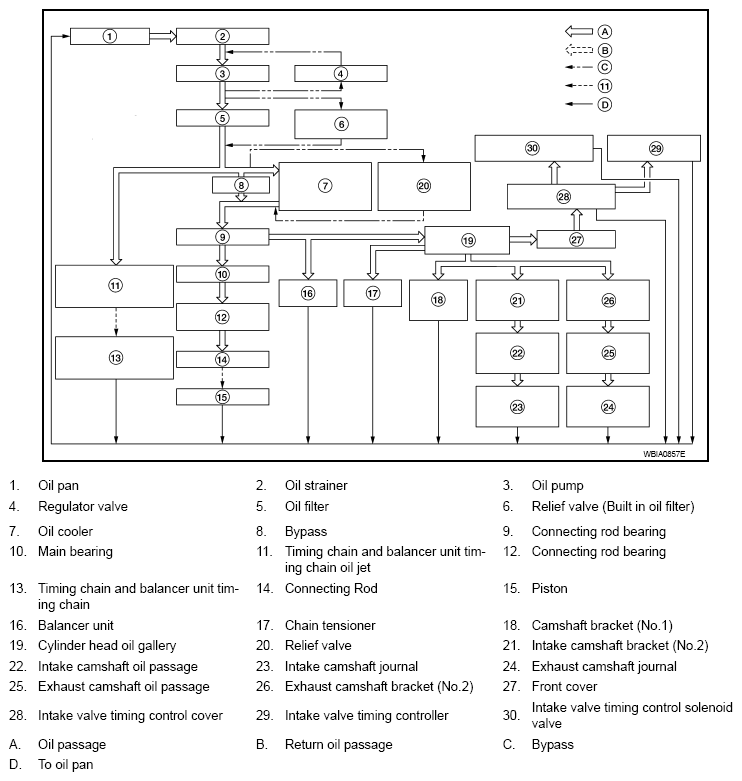

Fig 1: Lubrication System Schematic

G08184789

Courtesy of NISSAN NORTH AMERICA, INC.
