Removal and Installation QR25DE: Notes

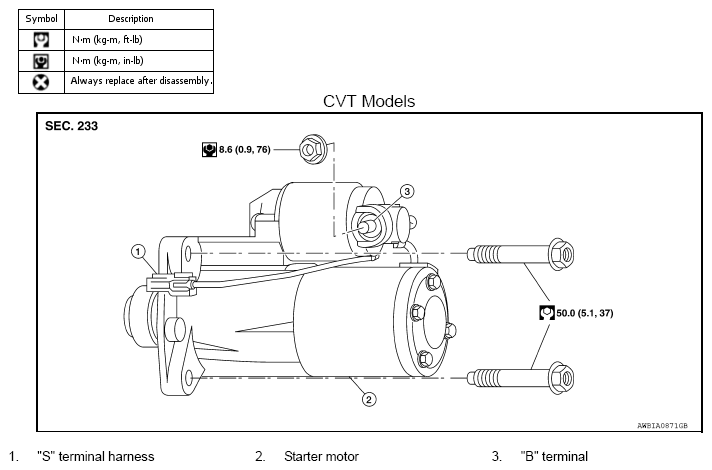

Fig 1: Exploded View Of Starter Motor With Torque Specification (CVT Models)
G08503271Courtesy of NISSAN NORTH AMERICA, INC.

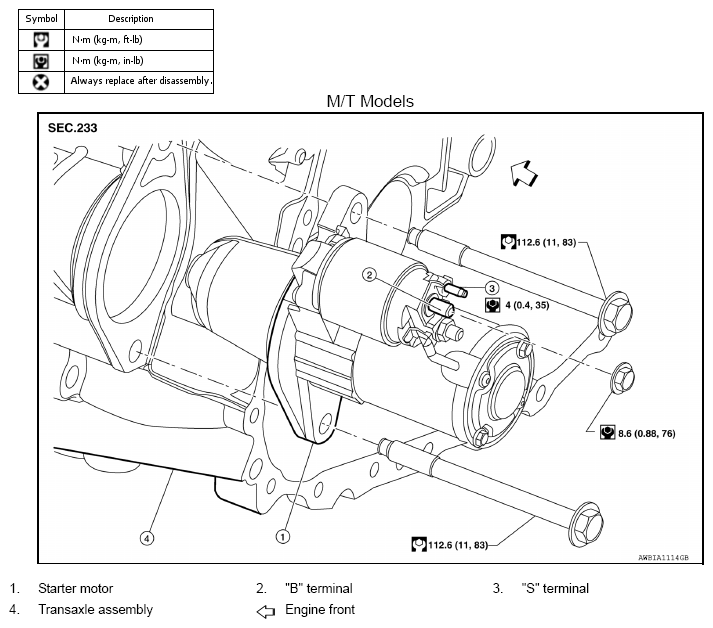

Fig 2: Exploded View Of Starter Motor With Torque Specification (M/T Models)
G08503272Courtesy of NISSAN NORTH AMERICA, INC.
