Removal and Installation: Components

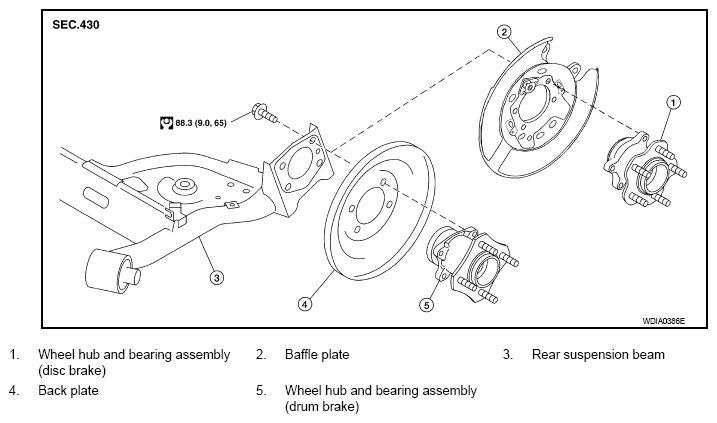

Fig 1: Wheel Hub And Bearing Assembly (Disc And Drum Brake) Components With Torque Specification

G08180243

Courtesy of NISSAN NORTH AMERICA, INC.
