Nissan-Datsun
>>
2012
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Drivelines & Axles
>>
Wheel Hubs
>>
Front Axle
>>
Service Information
>>
Front Wheel Hub
>>
Removal and Installation
>>
Component
Removal and Installation: Component

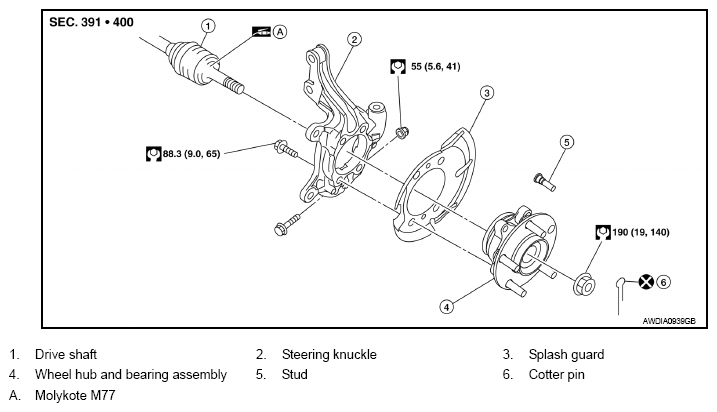

Fig 1: Exploded View Of Wheel Hub Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
