Home >> Nissan-Datsun >> 2012 >> Sentra SE-R >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Service Information >> Front Drive Shaft >> Disassembly and Assembly (Right Side) >> Notes

Disassembly and Assembly (Right Side): Notes

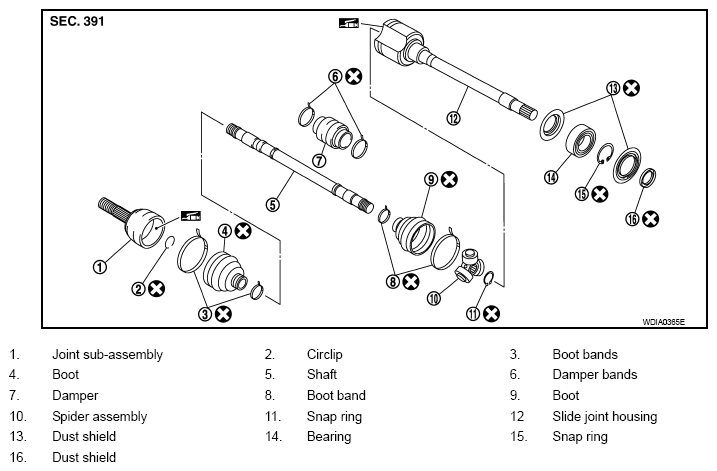

Fig 1: Disassembled View Of Front Drive Shaft (Right Side)

G08180214

Courtesy of NISSAN NORTH AMERICA, INC.
