Trouble Diagnosis: Schematic

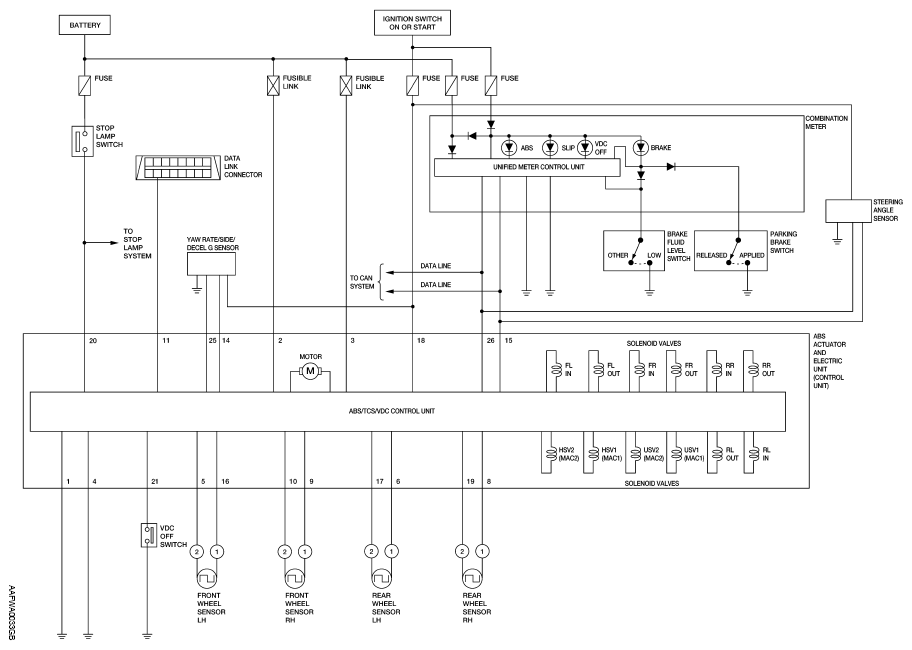

Fig 1: Brake Control System Schematic

G06552588

Courtesy of NISSAN NORTH AMERICA, INC.
