Front Disc Brake: Component

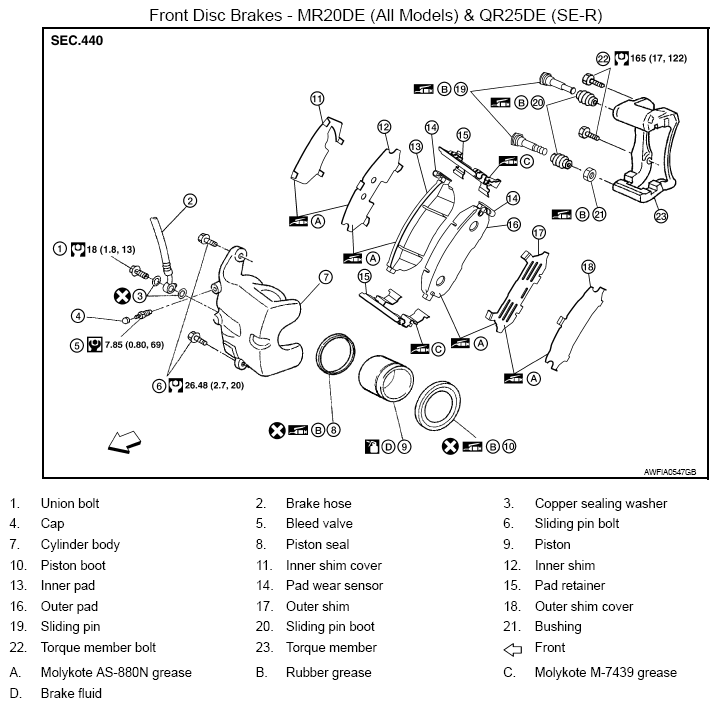

Fig 1: Exploded View Of Front Disc Brakes (MR20DE All Models) & (QR25DE SE-R) With Torque Specifications
G08180360Courtesy of NISSAN NORTH AMERICA, INC.

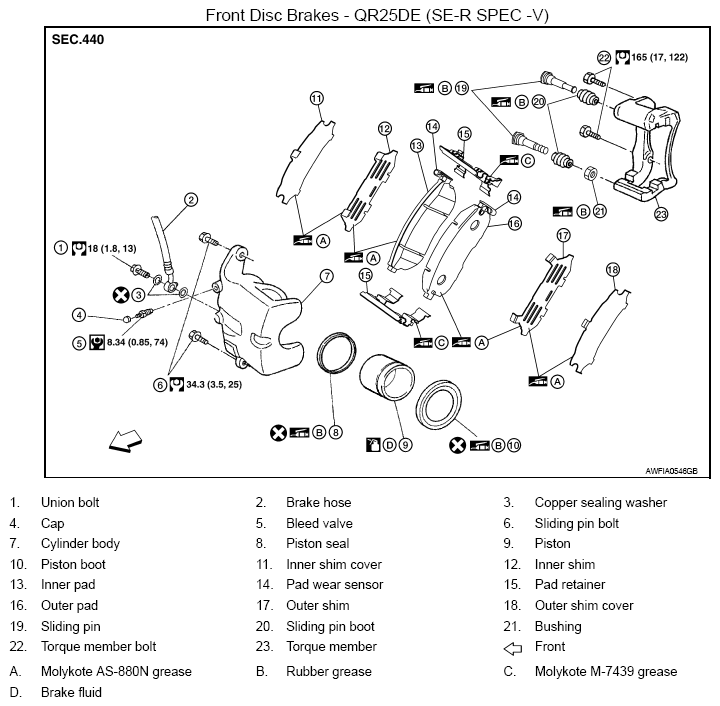

Fig 2: Exploded View Of Front Disc Brakes (QR25DE SE-R SPEC -V) With Torque Specifications
G08180361Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Clean dust with a vacuum dust collector. Do not blow with compressed air.
