Vehicle Security (Theft Warning) System: Schematic

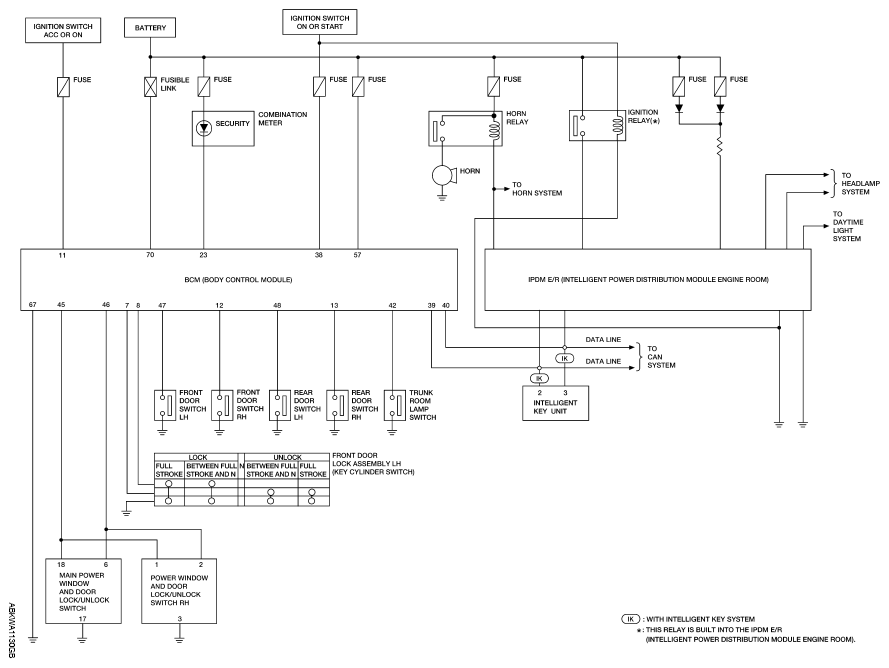

Fig 1: Identifying Vehicle Security (Theft Warning) System Schematic

G08181296

Courtesy of NISSAN NORTH AMERICA, INC.
