Service Information: Illumination: Schematic

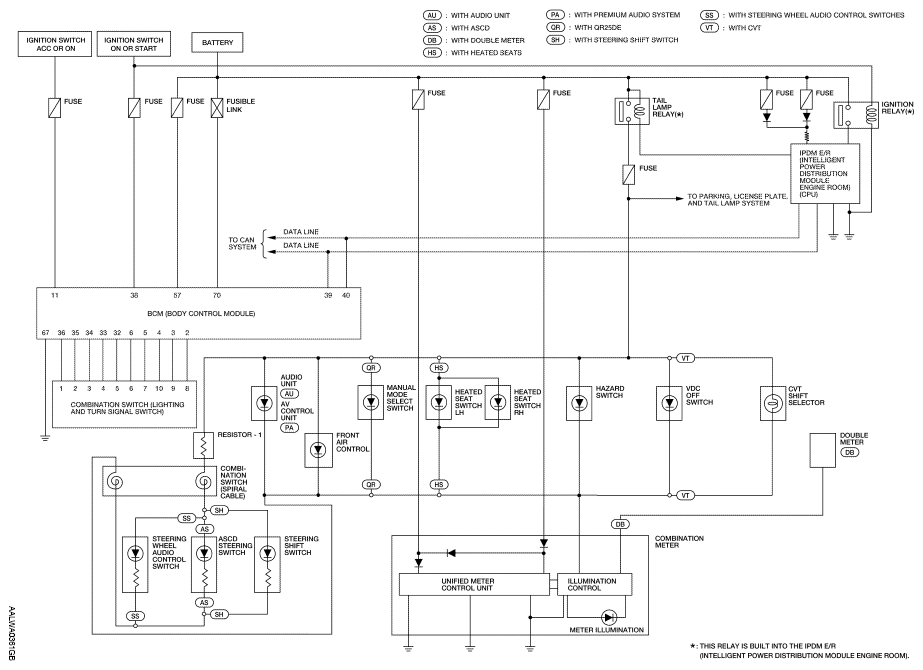

Fig 1: Identifying Illumination Lamp Schematic (LT-ILL-01)

G08181923

Courtesy of NISSAN NORTH AMERICA, INC.
