Engine Control System - Introduction (USA And CANADA)
>>
System Description
>>
Engine Control System
>>
System Diagram
System Diagram

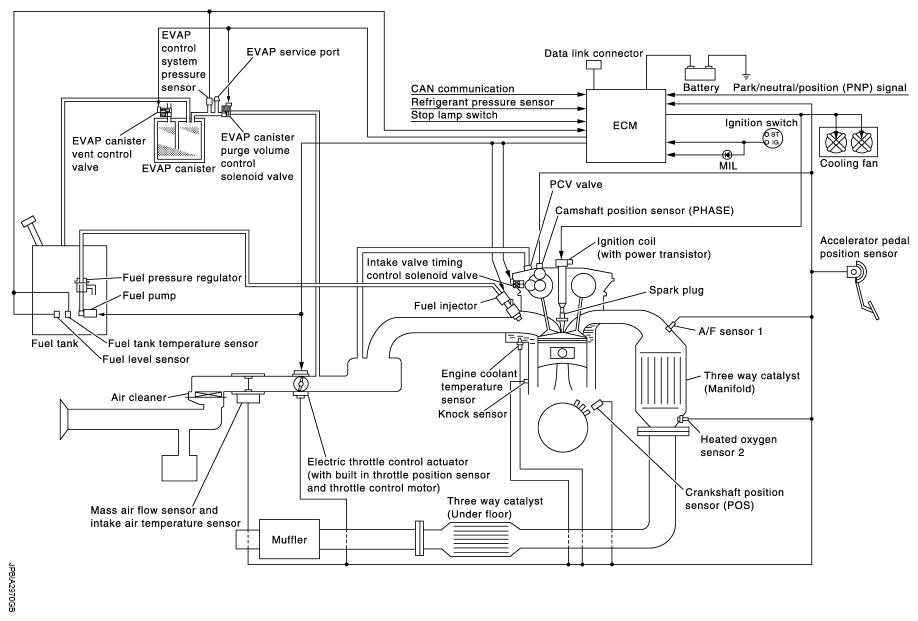

Fig 1: Engine Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
