Component Parts Location

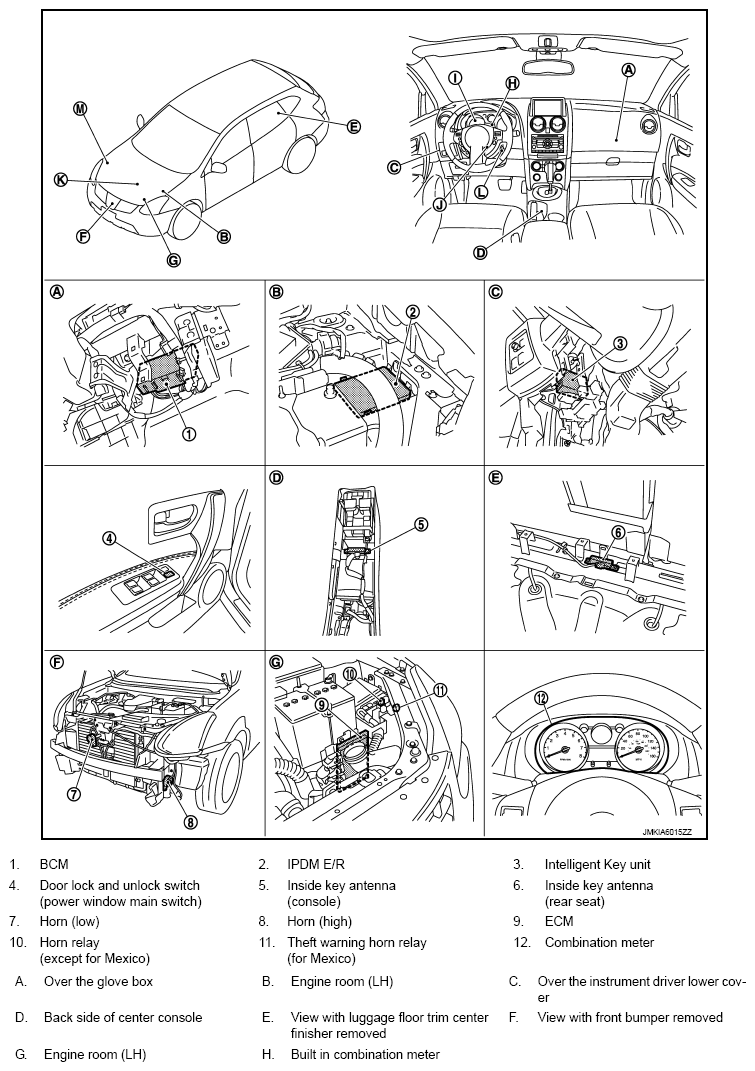

Fig 1: Intelligent Key/Engine Start Function Components Location (1 Of 2)
G08177229Courtesy of NISSAN NORTH AMERICA, INC.

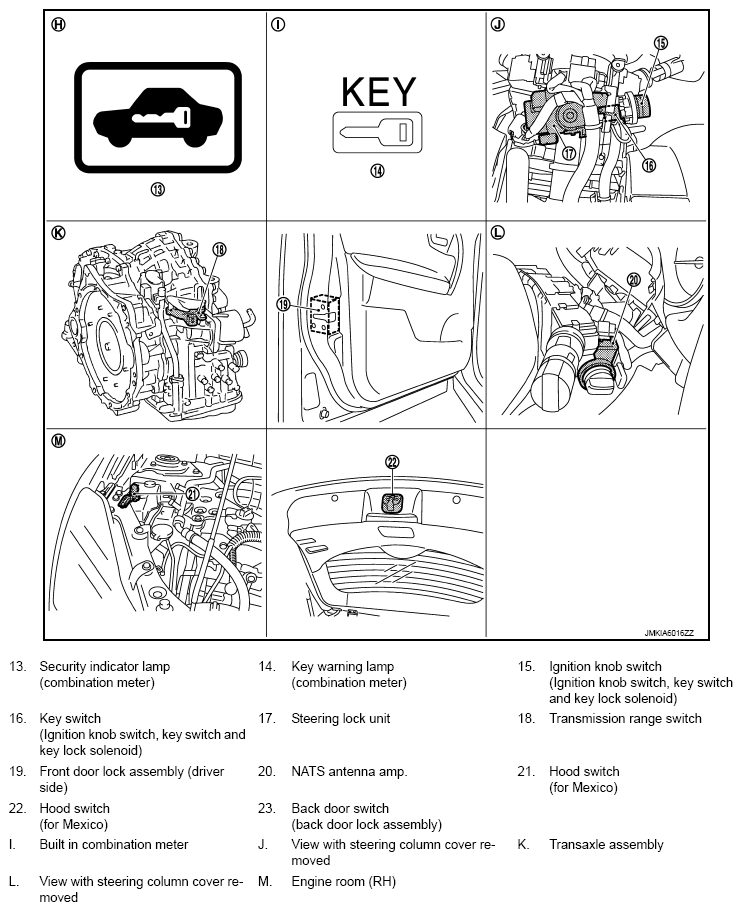

Fig 2: Intelligent Key/Engine Start Function Components Location (2 Of 2)
G08177230Courtesy of NISSAN NORTH AMERICA, INC.
