Nissan-Datsun
>>
2012
>>
Rogue S, FWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
System Description
>>
Description
>>

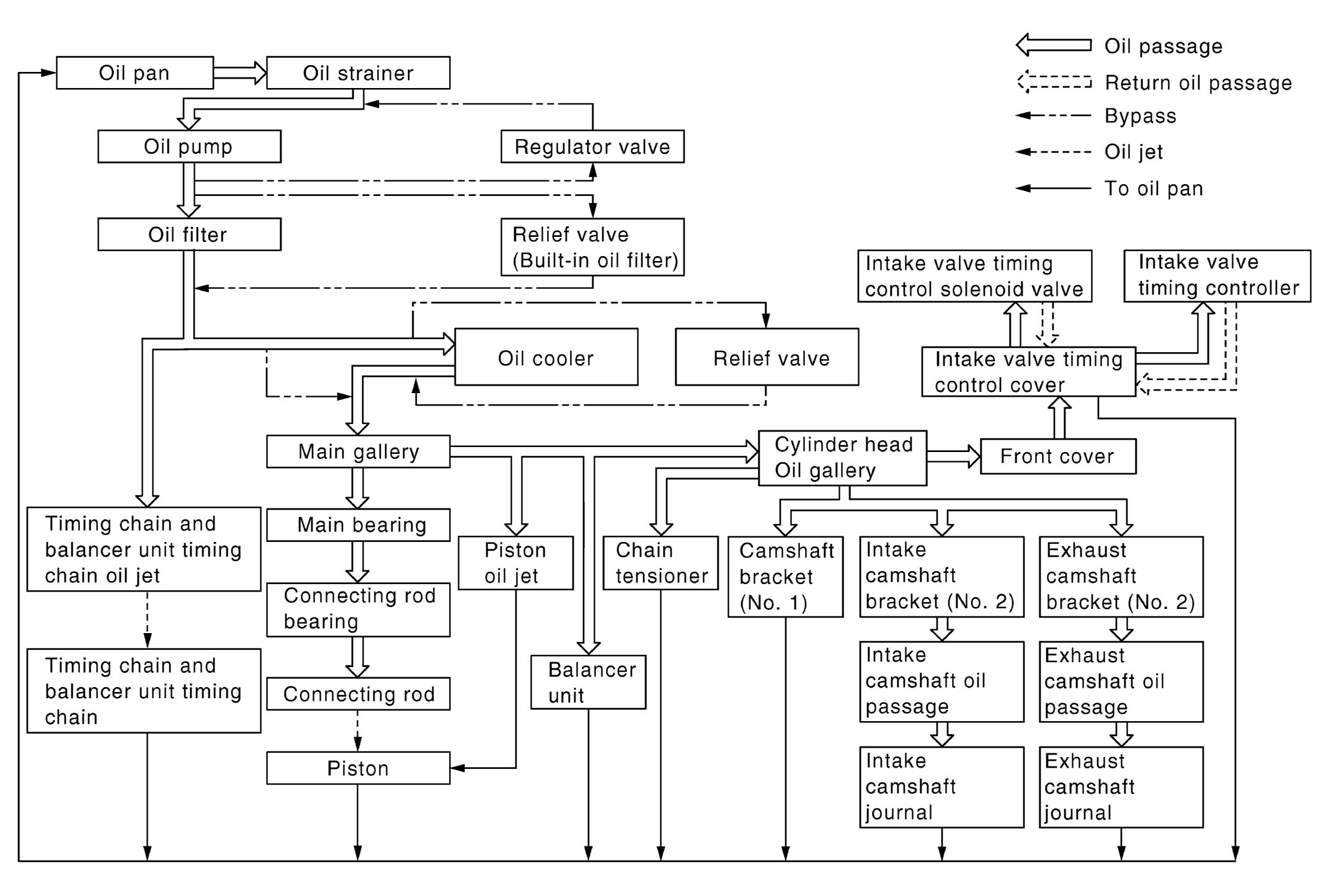

Engine Lubrication System Schematic
Engine Lubrication System Schematic
Fig 1: Engine Lubrication System Schematics
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
