Ambient Sensor
WARNING: This page is about a different car, the 2012 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

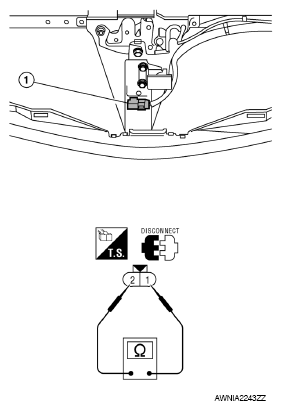

After disconnecting the ambient sensor harness connector, measure resistance between ambient sensor terminals 1 and 2 using the table below.
| Temperature °C (°F) | Resistance kΩ (Approx.) |
|---|---|
| -30 (-22) | 28.62 |
| -20 (-4) | 16.50 |
| -10 (14) | 9.92 |
| 0 (32) | 6.19 |
| 10 (50) | 3.99 |
| 20 (68) | 2.65 |
| 30 (86) | 1.81 |
| 40 (104) | 1.27 |
| 50 (122) | 0.90 |
| 55 (131) | 0.77 |
| 60 (140) | 0.66 |
If NG, replace ambient sensor.
