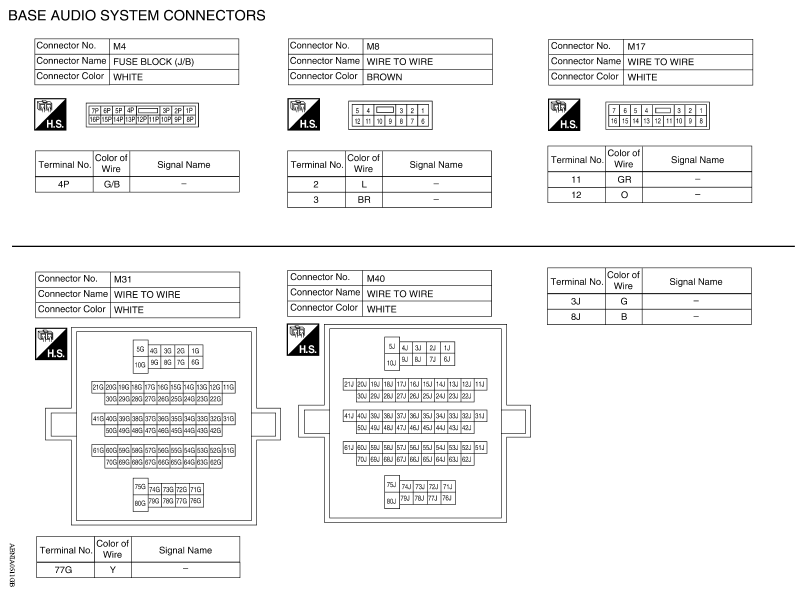

Fig 1: Base Audio System Connector Terminal Identification (1 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

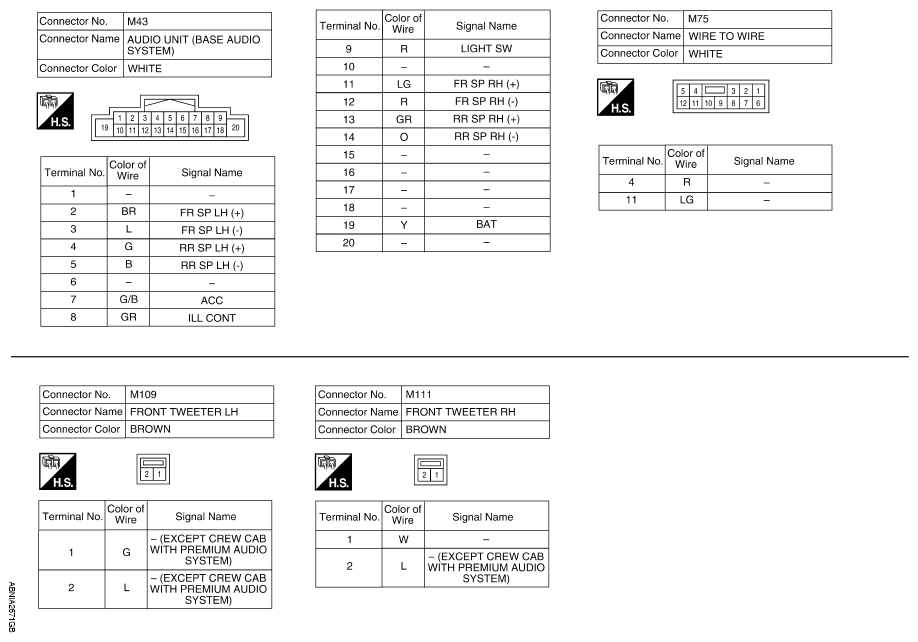

Fig 2: Base Audio System Connector Terminal Identification (2 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

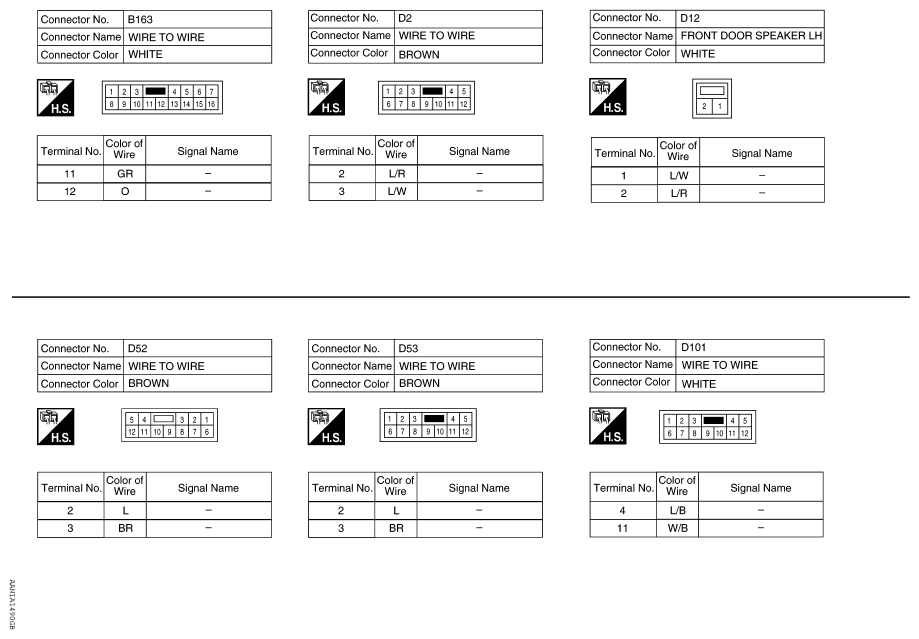

Fig 3: Base Audio System Connector Terminal Identification (3 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

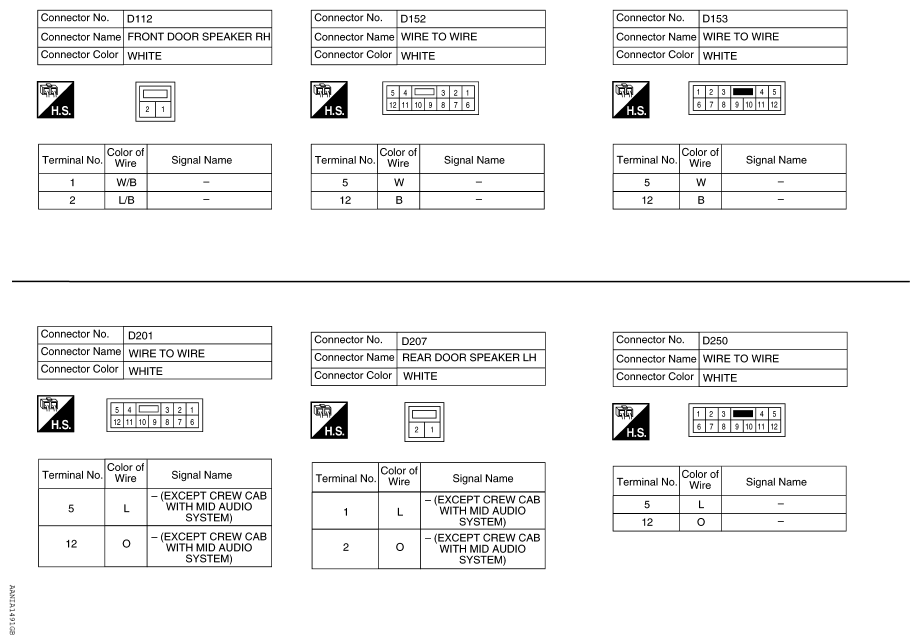

Fig 4: Base Audio System Connector Terminal Identification (4 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

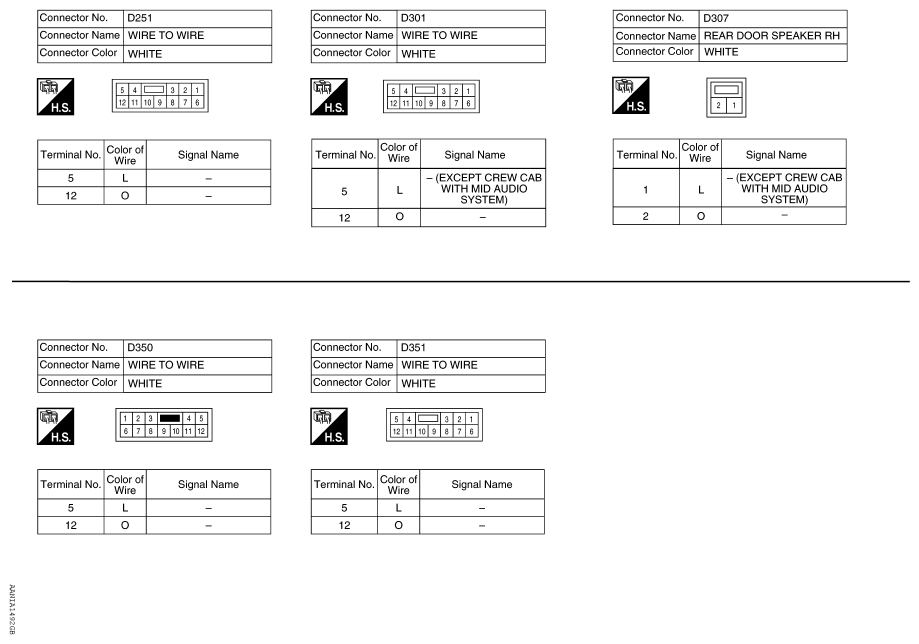

Fig 5: Base Audio System Connector Terminal Identification (5 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

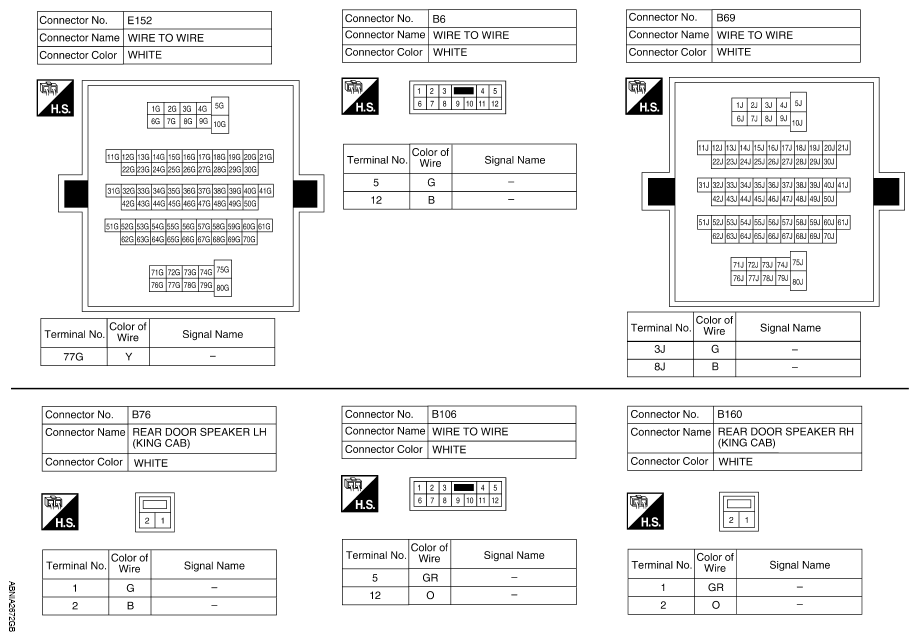

Fig 6: Base Audio System Connector Terminal Identification (6 Of 6)
