Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

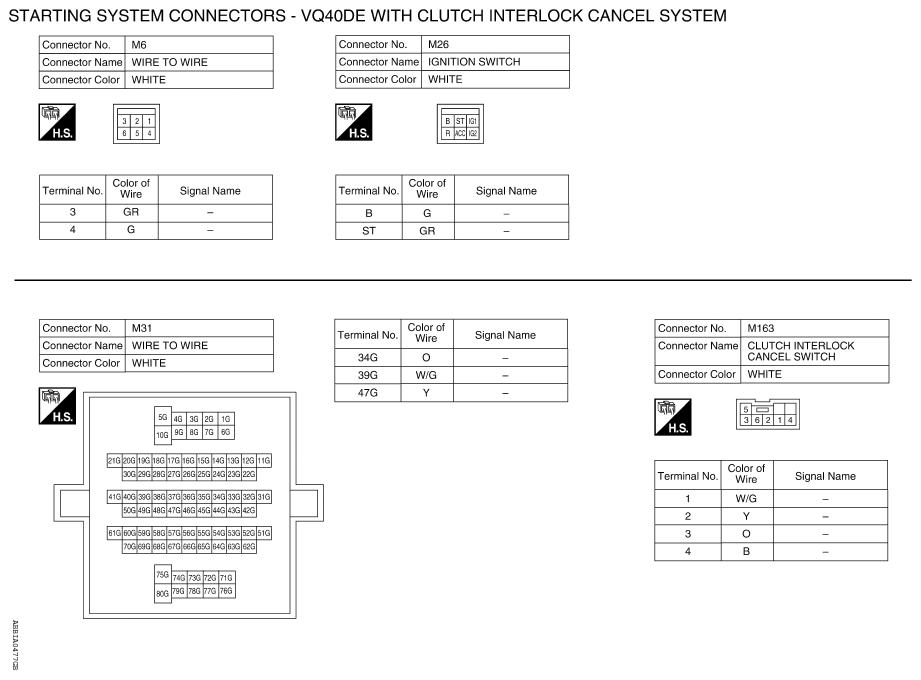

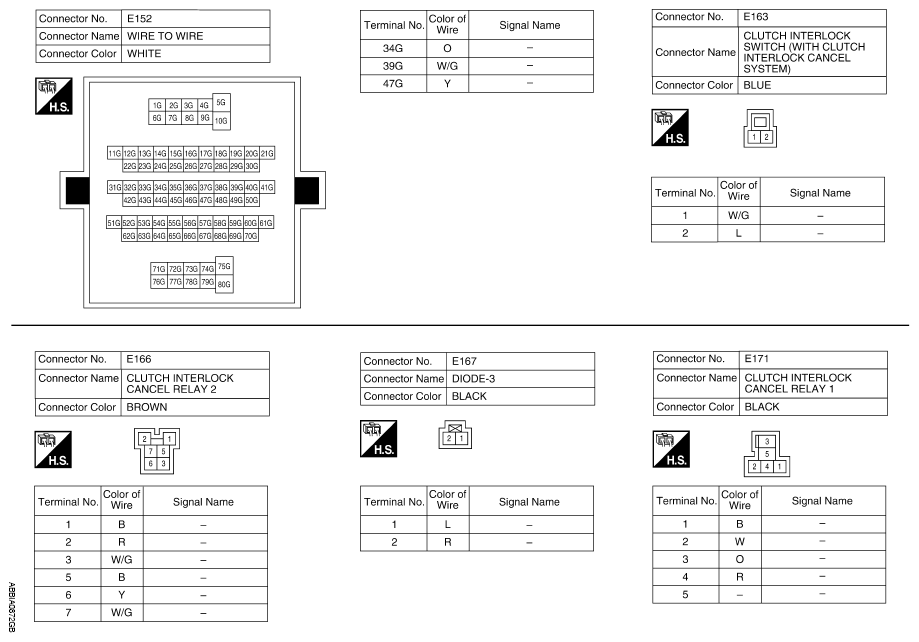

Fig 1: Starting System Connector Terminal Identification With Clutch Interlock Cancel System (VQ40DE) (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

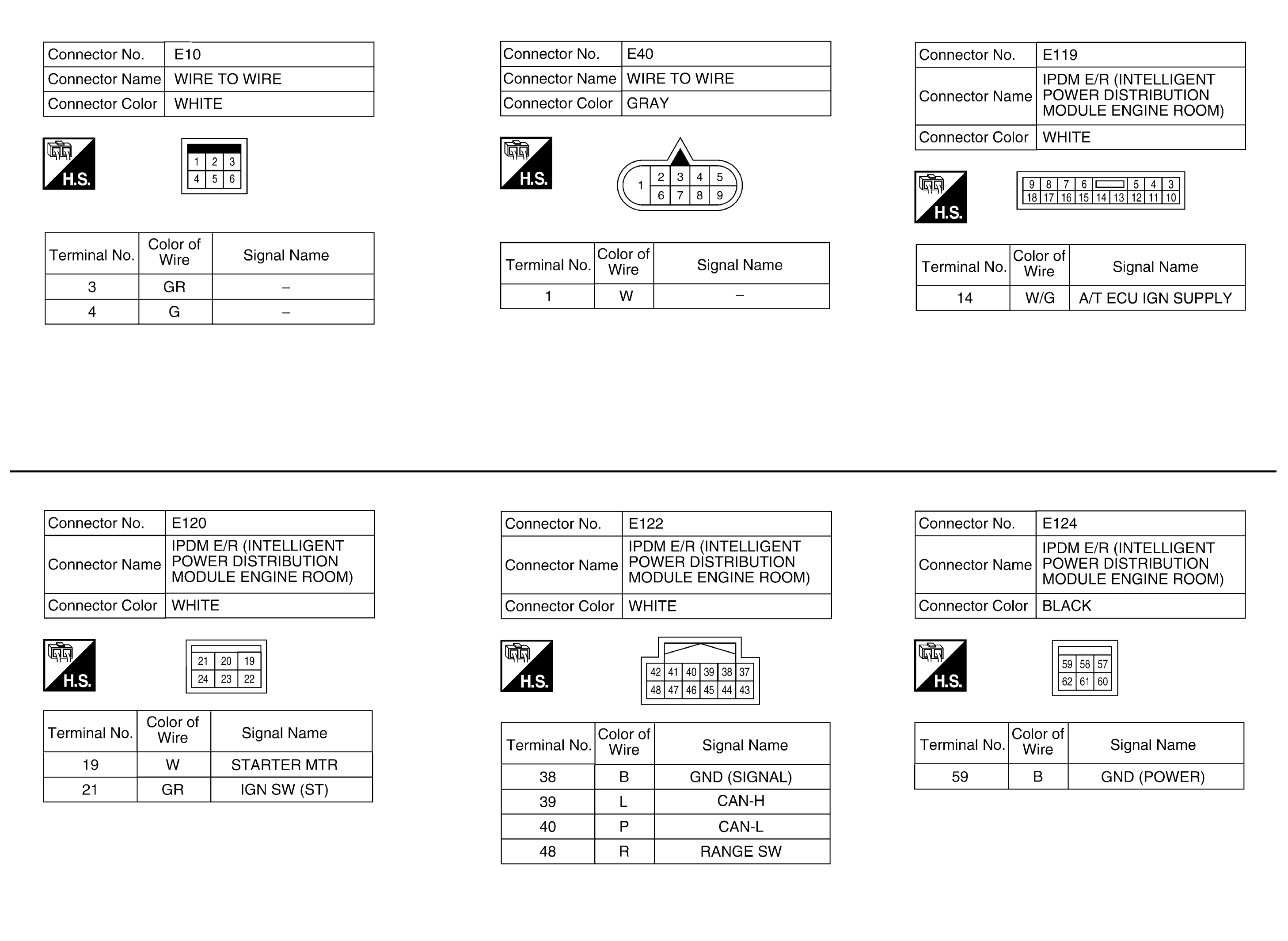

Fig 2: Starting System Connector Terminal Identification With Clutch Interlock Cancel System (VQ40DE) (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

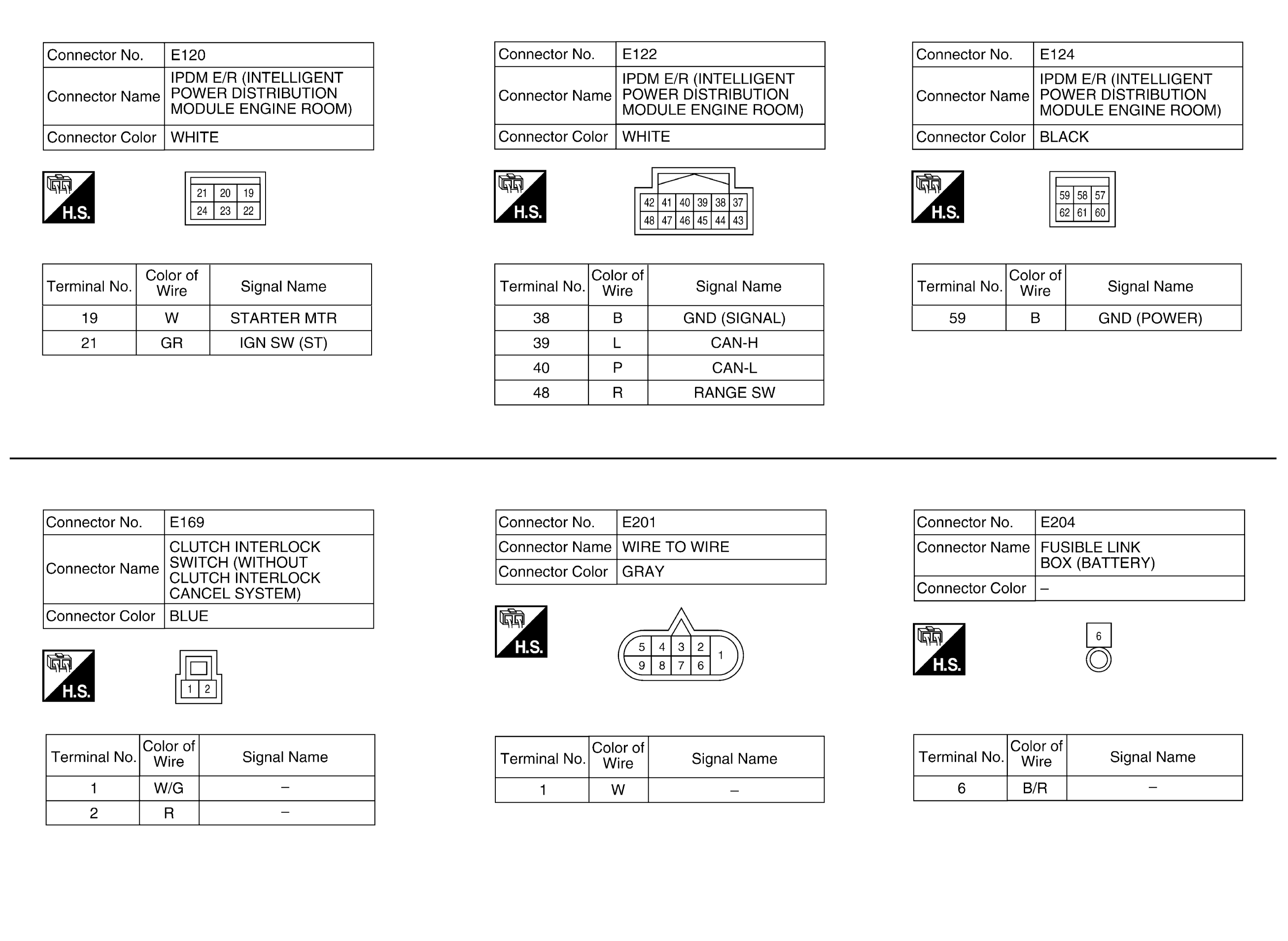

Fig 3: Starting System Connector Terminal Identification With Clutch Interlock Cancel System (VQ40DE) (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

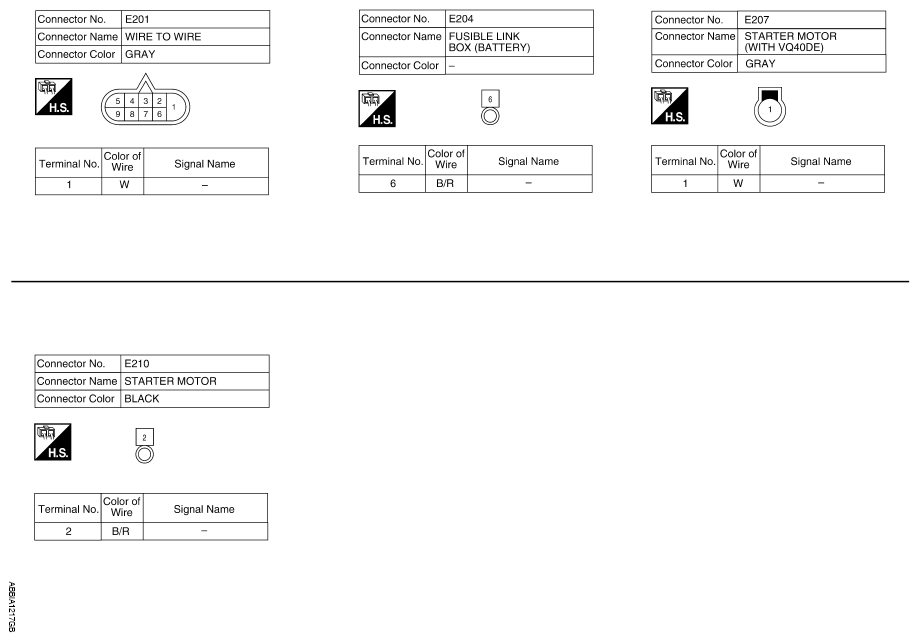

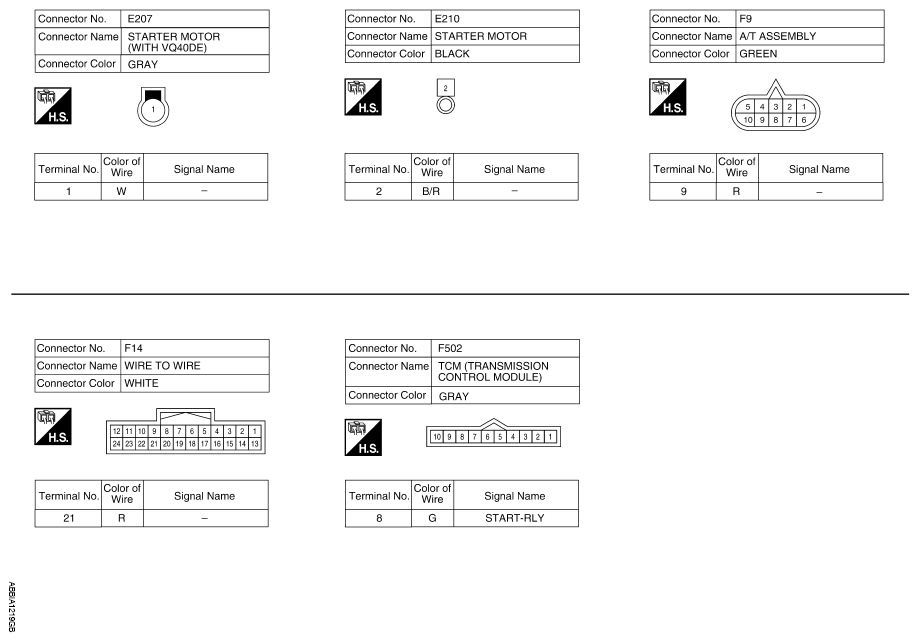

Fig 4: Starting System Connector Terminal Identification With Clutch Interlock Cancel System (VQ40DE) (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

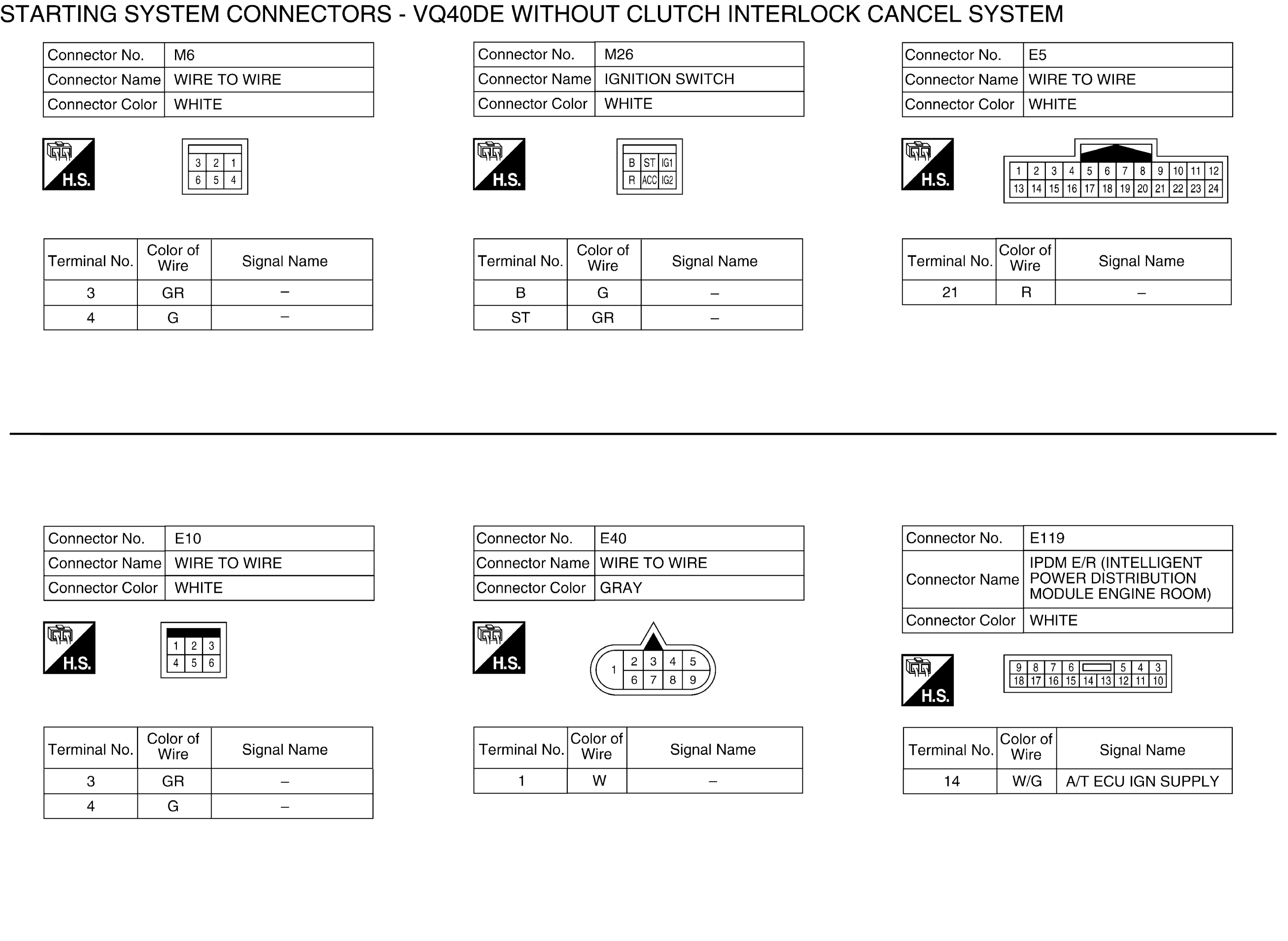

Fig 1: Starting System Connector Terminal Identification With Clutch Interlock Cancel System (VQ40DE) (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

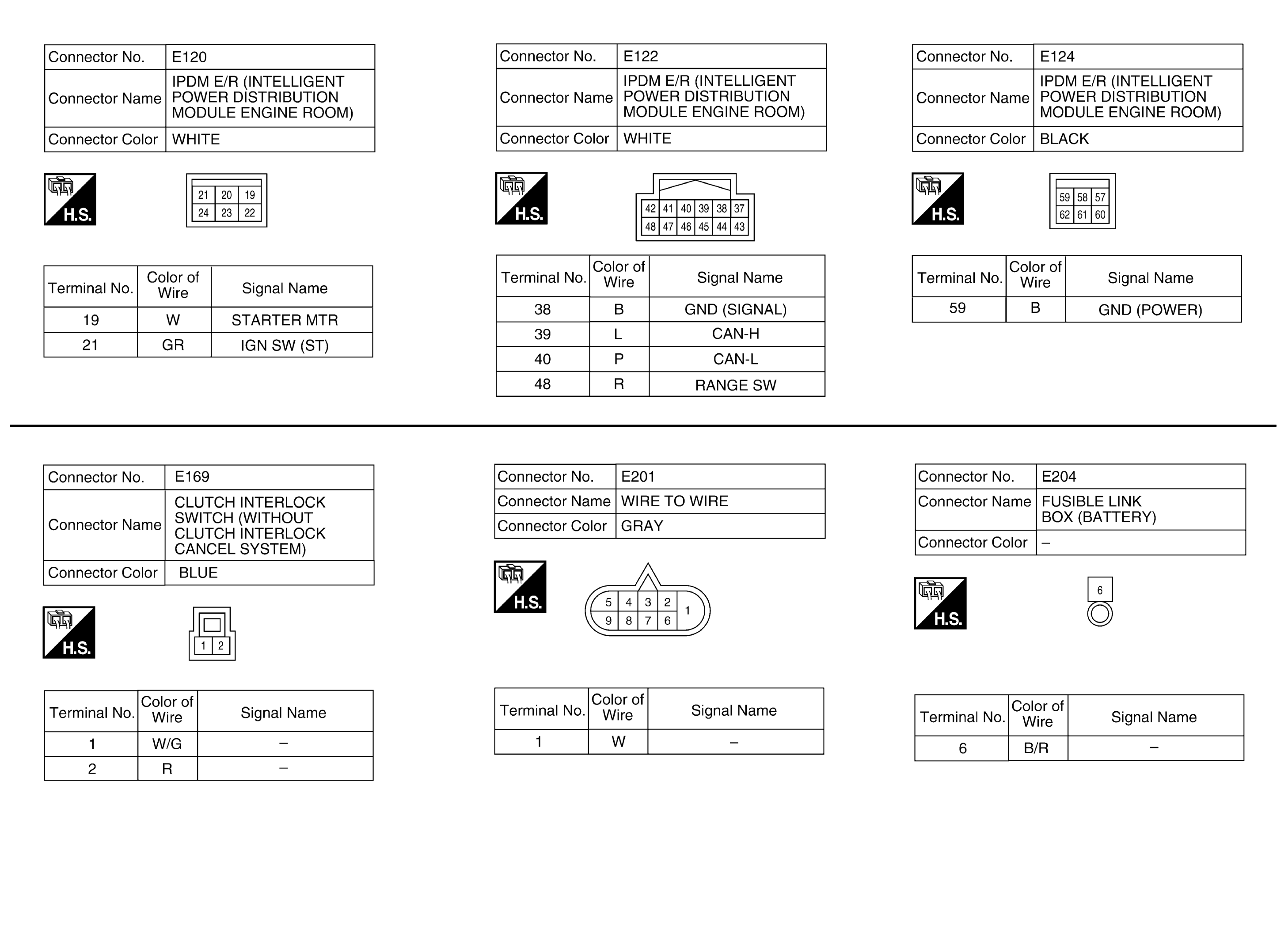

Fig 2: Starting System Connector Terminal Identification With Clutch Interlock Cancel System (VQ40DE) (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Starting System Connector Terminal Identification With Clutch Interlock Cancel System (VQ40DE) (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

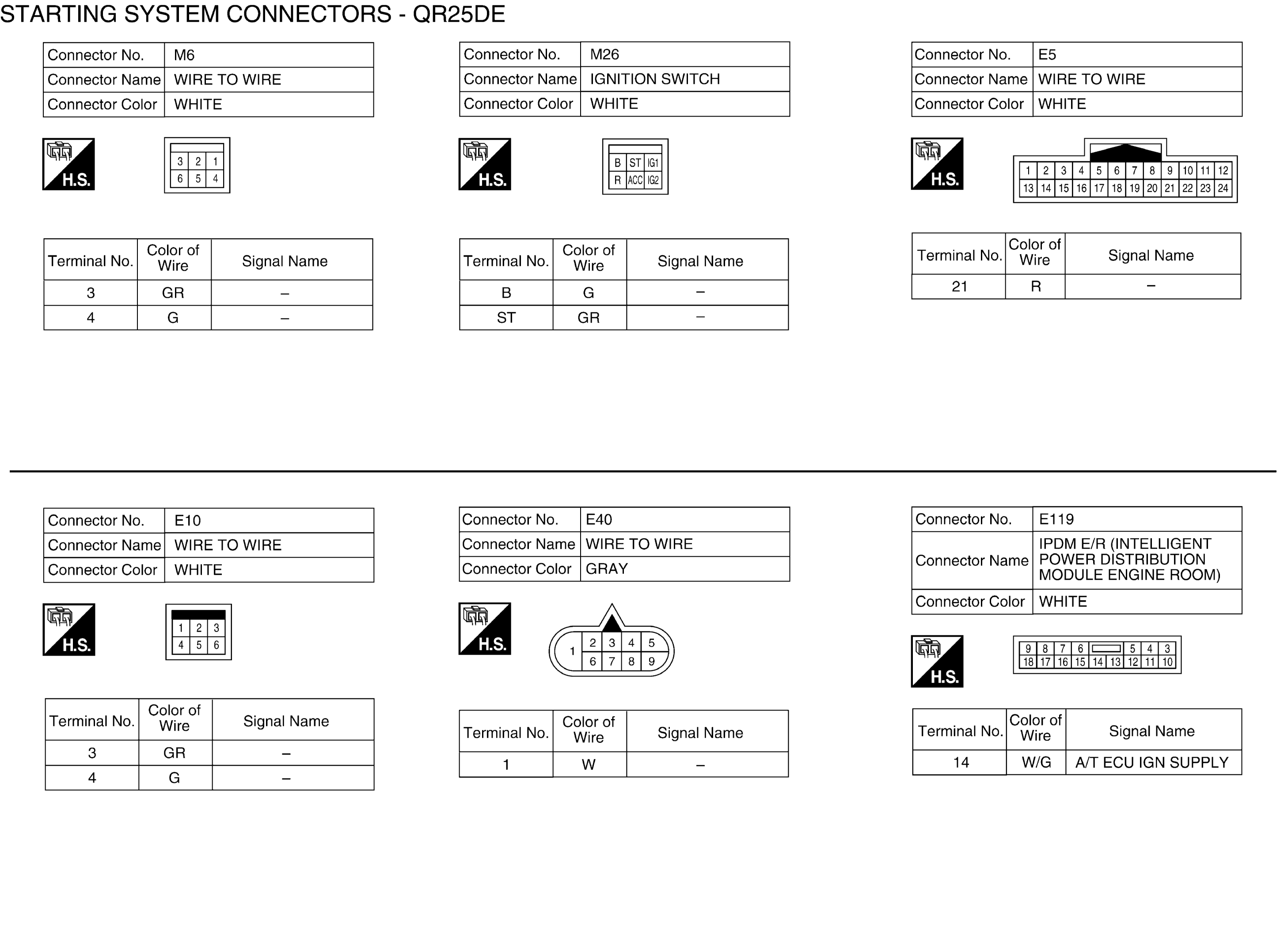

Fig 1: Starting System Connector Terminal Identification (QR25DE) (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Starting System Connector Terminal Identification (QR25DE) (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

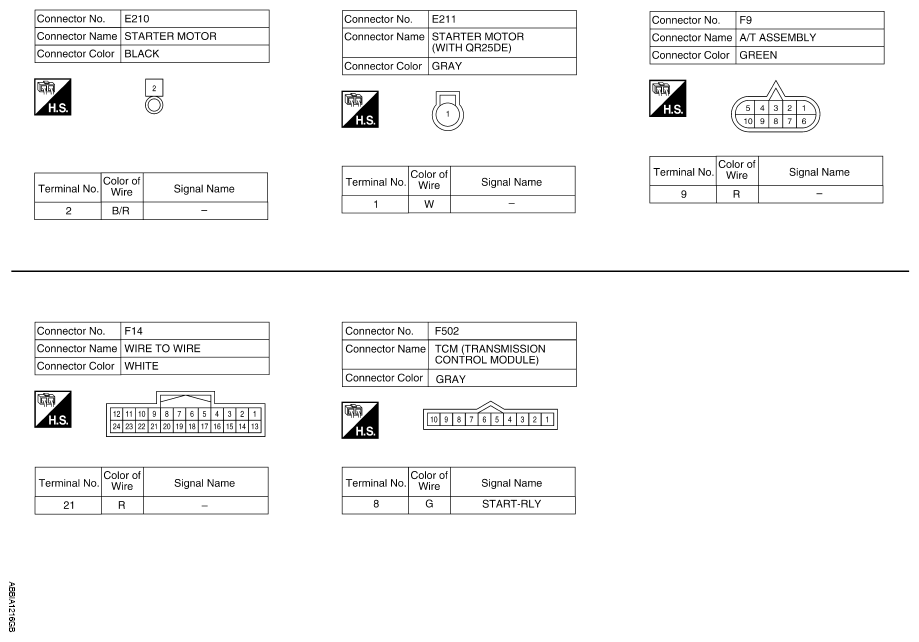

Fig 3: Starting System Connector Terminal Identification (QR25DE) (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
