Component Parts Location

WARNING: This page is about a different car, the 2012 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

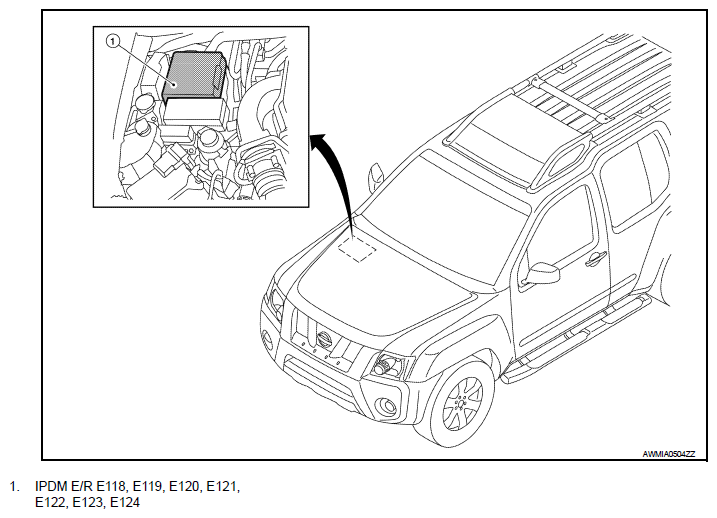

Fig 1: Identifying IPDM E/R Component Parts Location
G08203180Courtesy of NISSAN NORTH AMERICA, INC.
