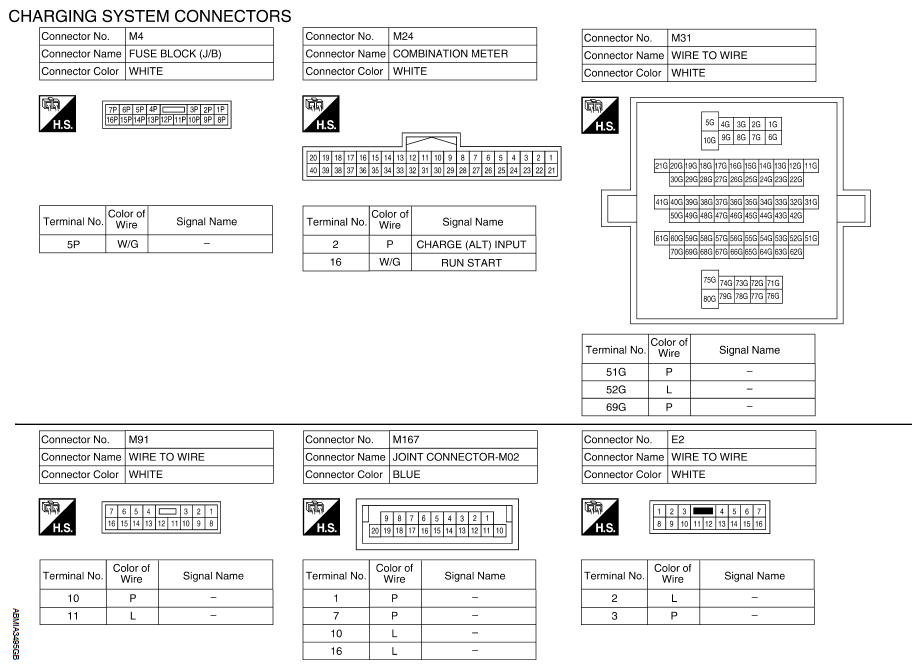

Fig 1: Identifying Charging System Connectors (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

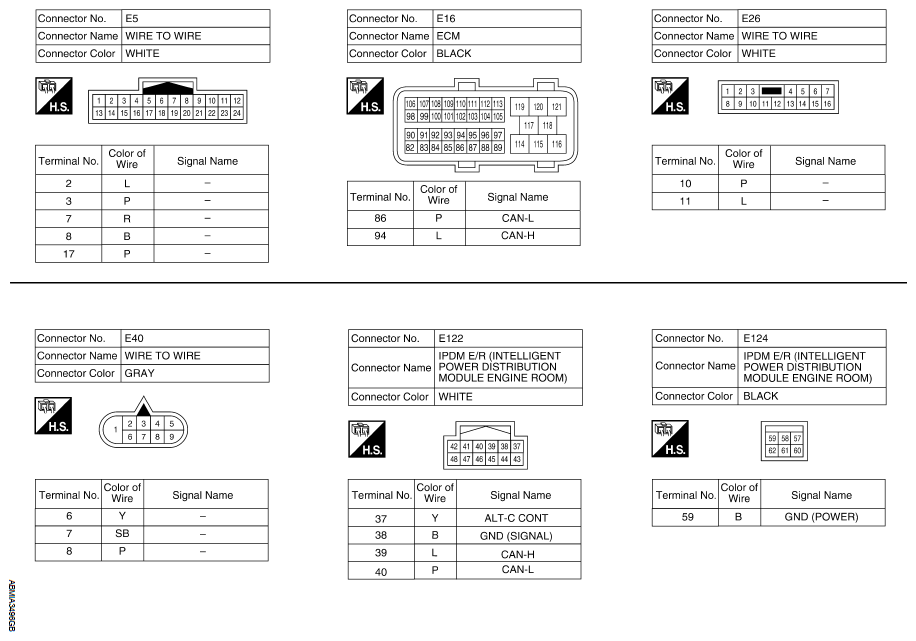

Fig 2: Identifying Charging System Connectors (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

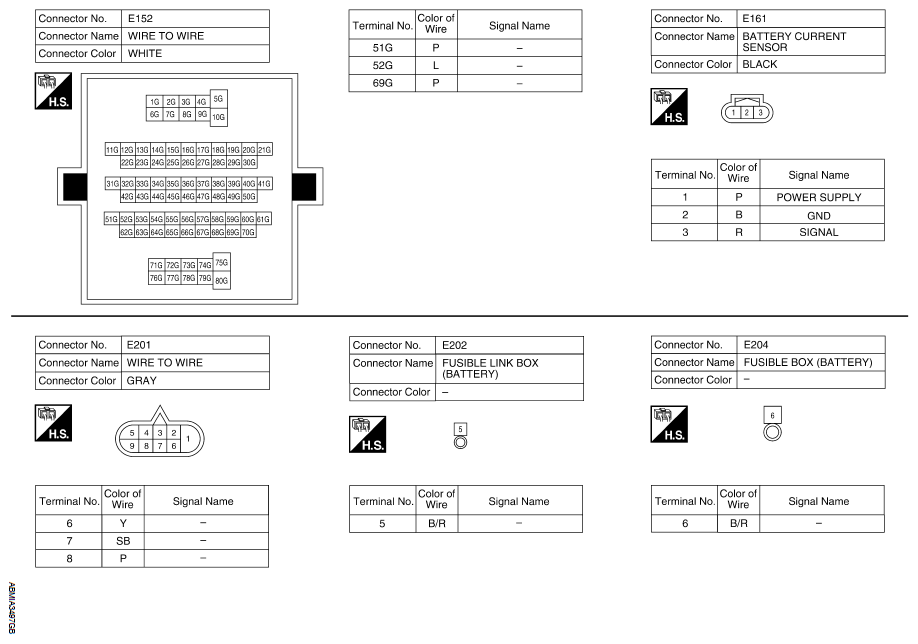

Fig 3: Identifying Charging System Connectors (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

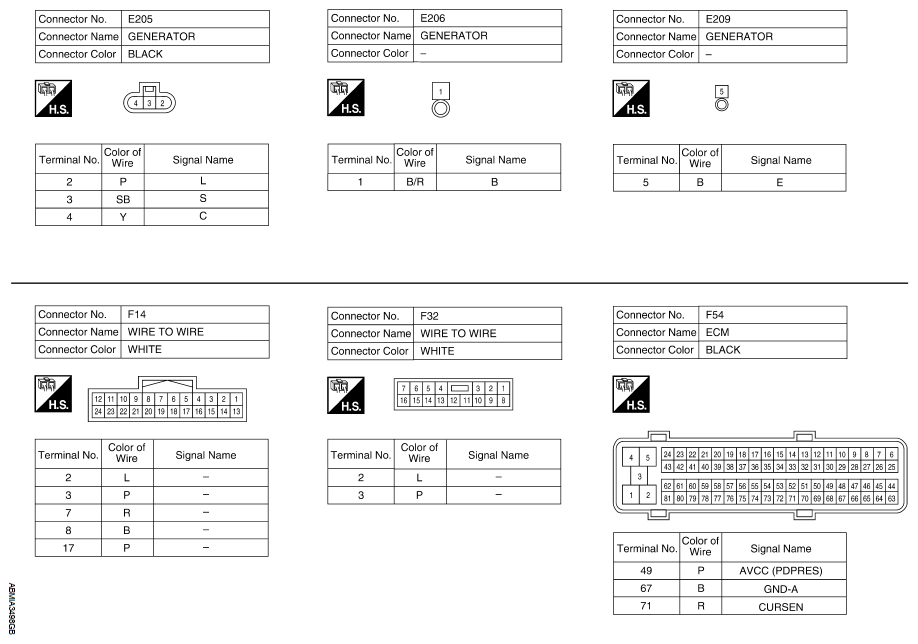

Fig 4: Identifying Charging System Connectors (4 Of 4)
