Function and System Application

WARNING: This page is about a different car, the 2012 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

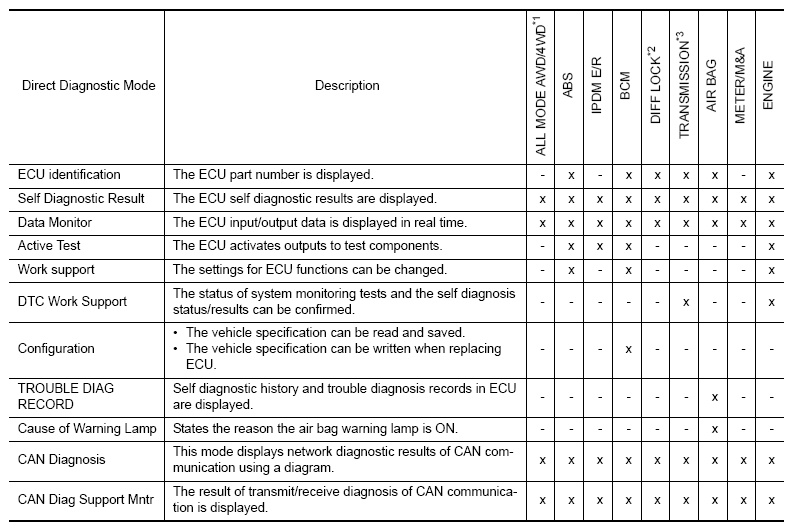

Fig 1: Identifying Function & System Application Chart
G08130647Courtesy of NISSAN NORTH AMERICA, INC.

x: Applicable

*1: With 4WD

*2: With electronic locking rear differential

*3: With automatic transmission
