Component Parts Location

Fig 1: Air Conditioning Cut Control Components Location (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

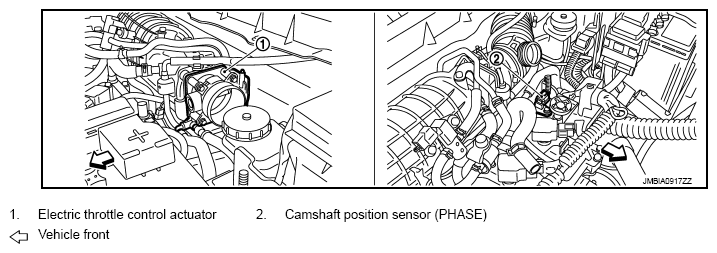

Fig 2: Air Conditioning Cut Control Components Location (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

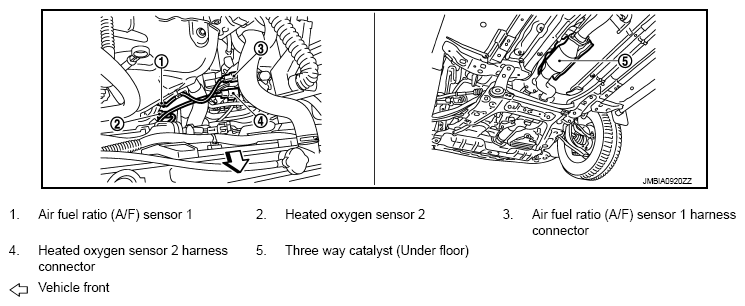

Fig 3: Air Conditioning Cut Control Components Location (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

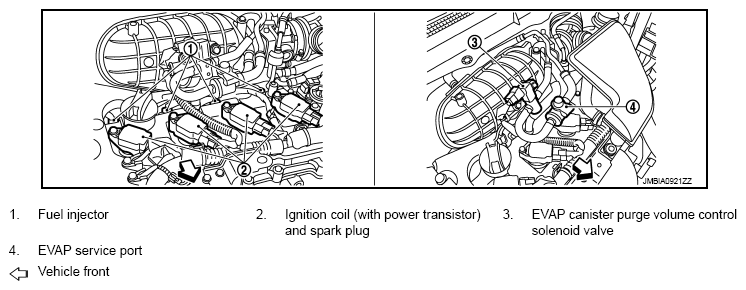

Fig 4: Air Conditioning Cut Control Components Location (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

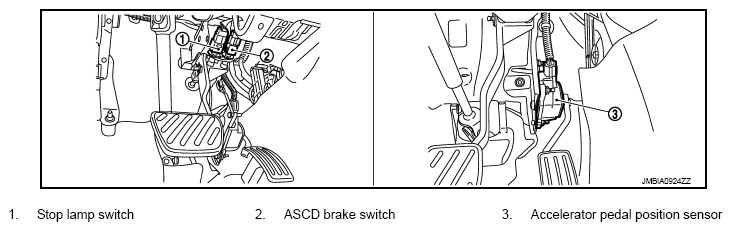

Fig 5: Air Conditioning Cut Control Components Location (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Air Conditioning Cut Control Components Location (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Air Conditioning Cut Control Components Location (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Air Conditioning Cut Control Components Location (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Air Conditioning Cut Control Components Location (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Air Conditioning Cut Control Components Location (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Air Conditioning Cut Control Components Location (11 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Air Conditioning Cut Control Components Location (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Air Conditioning Cut Control Components Location (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
