Inspection After Installation

After inserting a torque converter to transaxle assembly, check dimension (A) is within the reference value limit.

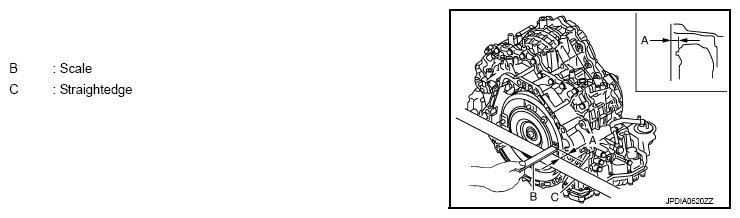

Fig 1: Measuring Torque Converter Insertion

Courtesy of NISSAN NORTH AMERICA, INC.

Dimension A: Refer to  "TORQUE CONVERTER ".
