CVT CONTROL SYSTEM: Circuit Diagram

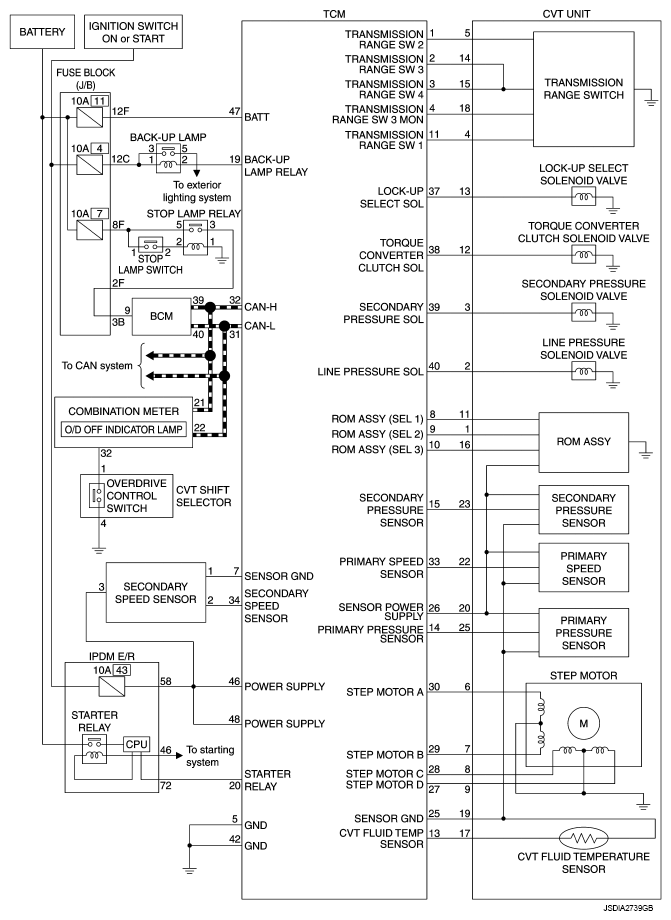

Fig 1: Identifying CVT Control System Circuit Wiring Diagram

G07051966

Courtesy of NISSAN NORTH AMERICA, INC.
