Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

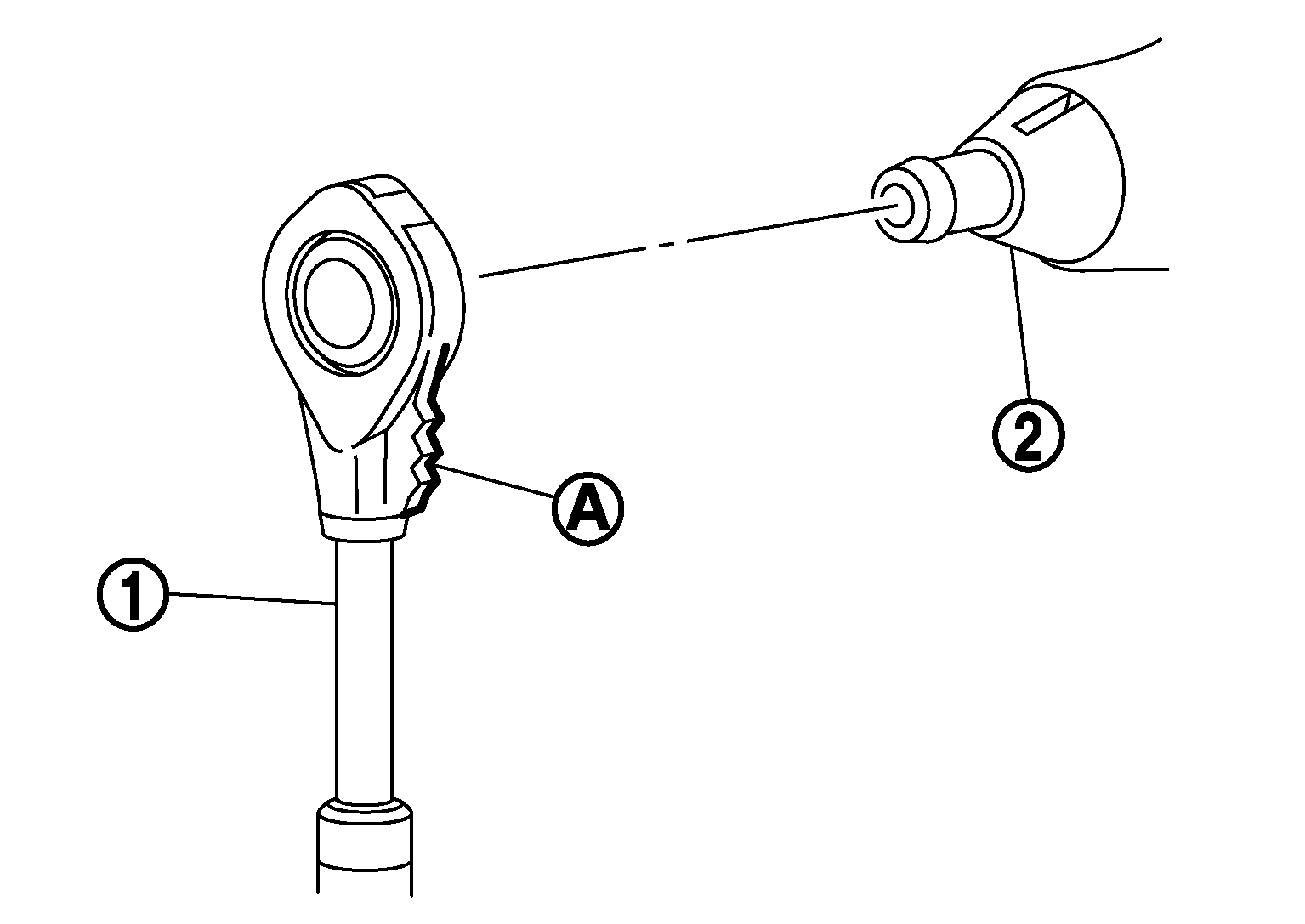

• When installing control cable (1) to CVT shift selector assembly (2), check that control cable is fully pressed in with the ribbed (A) surface facing rearward.
  Fig 1: Identifying Control Cable & Shift Selector Assembly

  Courtesy of NISSAN NORTH AMERICA, INC.
• Install the socket (A) onto the CVT shift selector assembly.
  CAUTION:

  • Place the socket onto the CVT shift lever, then fasten it in place from above.
  • Check that the pulling on the socket does not disconnected.
    Fig 2: Removing CVT Shift Selector Assembly Socket

    Courtesy of NISSAN NORTH AMERICA, INC.
