Combination Meter

WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The buzzer (1) for the warning chime system is integrated in the combination meter.

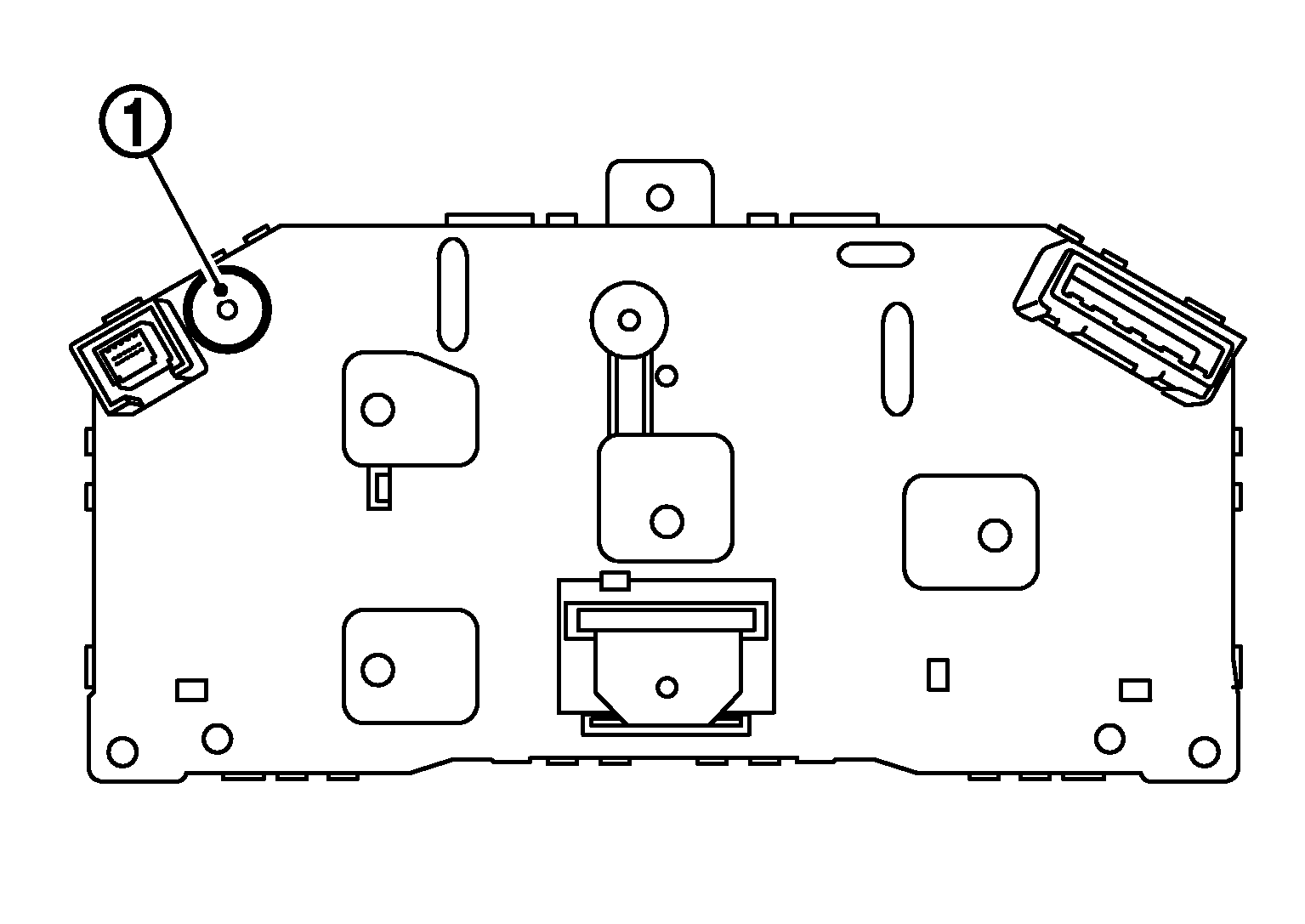

Fig 1: Identifying Buzzer Of Warning Chime System
G07054639Courtesy of NISSAN MOTOR CO., U.S.A.
