Section 41 (Seats)
>>
Removal And Installation
>>
Second Seat
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

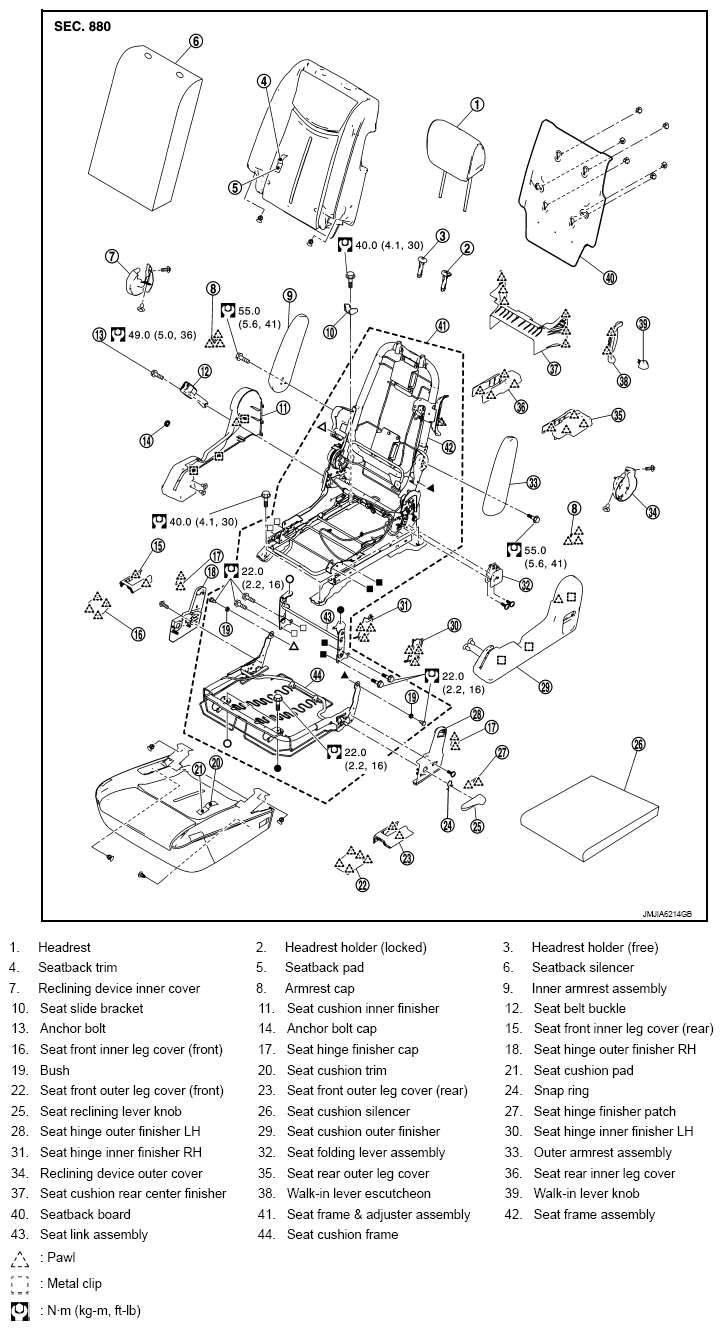

Fig 1: Exploded View Of Second Seat With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
