Engine Coolant: Refilling

WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not put additive such as waterleak preventive, since it may cause cooling waterway clogging.
  • When refilling use Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality mixed with water (distilled or demineralized). Refer to "FLUIDS AND LUBRICANTS ".
  1. Install reservoir tank if removed and radiator drain plug.
    CAUTION: Be sure to clean drain plug and install with new O-ring.

    Tightening torque :  Refer to "EXPLODED VIEW ".

    If water drain plugs on cylinder block are removed, close and tighten them.  Refer to "DISASSEMBLY AND ASSEMBLY ".

  2. Check that each hose clamp has been firmly tightened.
  3. Remove air duct assembly and air cleaner cases (upper and lower) assembly. Refer to "EXPLODED VIEW ".
  4. Remove air bleeder plug (1) of heater pipe.

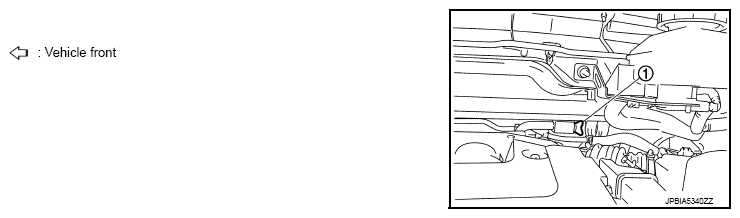

    Fig 1: Identifying Air Bleeder Plug Of Heater Pipe
    G07052657Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove air bleeder plug (1) of rear heater.

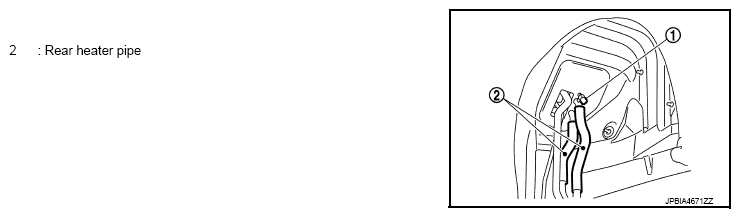

    Fig 2: Identifying Air Bleeder Plug Of Rear Heater
    G07052658Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Fill radiator, and reservoir tank if removed, to specified level.
    CAUTION: Never adhere the engine coolant to electronic equipments. (alternator etc.)
    • Pour engine coolant through engine coolant filler neck slowly of less than 2 l  (2-1/8 US qt, 1-3/4 lmp qt) a minute to allow air in system to escape.
    • When coolant comes out from the air bleeder plug of rear heater, install the removed bleeder plug and continue filling with coolant.
    • When coolant comes out from the air bleeder plug of heater pipe, tighten the bleeder plug.
      Fig 3: Identifying Engine Coolant Level
      G05226897Courtesy of NISSAN MOTOR CO., U.S.A.

    Engine coolant capacity :  Refer to "PERIODICAL MAINTENANCE SPECIFICATION ".

    (With reservoir tank at "MAX" level)

    Reservoir tank engine coolant capacity :  Refer to "PERIODICAL MAINTENANCE SPECIFICATION ".

    (At "MAX" level)

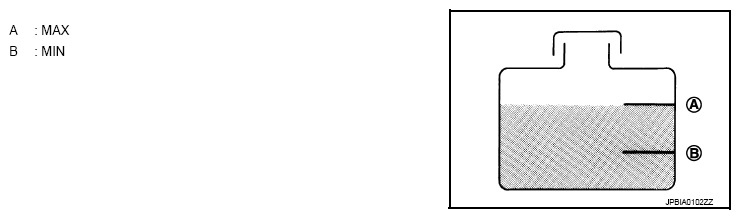

    Fig 4: Identifying Reservoir Tank Engine Coolant Levels
    G07052660Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install air duct assembly and air cleaner cases (upper and lower) assembly. Refer to "EXPLODED VIEW ".
  8. Install radiator cap.
  9. Warm up engine until opening thermostat. Standard for warming-up time is approximately 10 minutes at 3,000 RPM.
    • Check thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
      CAUTION: Watch water temperature gauge so as not to overheat engine.
  10. Stop the engine and cool down to less than approximately 50°C (122°F).
    • Cool down using fan to reduce the time.
    • If necessary, refill radiator up to filler neck with engine coolant.
      CAUTION: Never adhere the engine coolant to electronic equipments. (alternator etc.)
  11. Refill reservoir tank to "MAX" level line with engine coolant.
  12. Repeat steps  7 through  10 two or more times with radiator cap installed until engine coolant level no longer drops.
  13. Check cooling system for leakage with engine running.
  14. Warm up the engine, and check for sound of engine coolant flow while running engine from idle up to 3,000 RPM with heater temperature controller set at several position between "COOL" and "WARM".
    • Sound may be noticeable at heater unit.
  15. Repeat step  13 three times.
  16. If sound is heard, bleed air from cooling system by repeating step  5, and steps from  7 to  14 until engine coolant level no longer drops.
