Nissan-Datsun
>>
2012
>>
Quest SL
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Slide Door Glass
>>
Exploded View
Exploded View

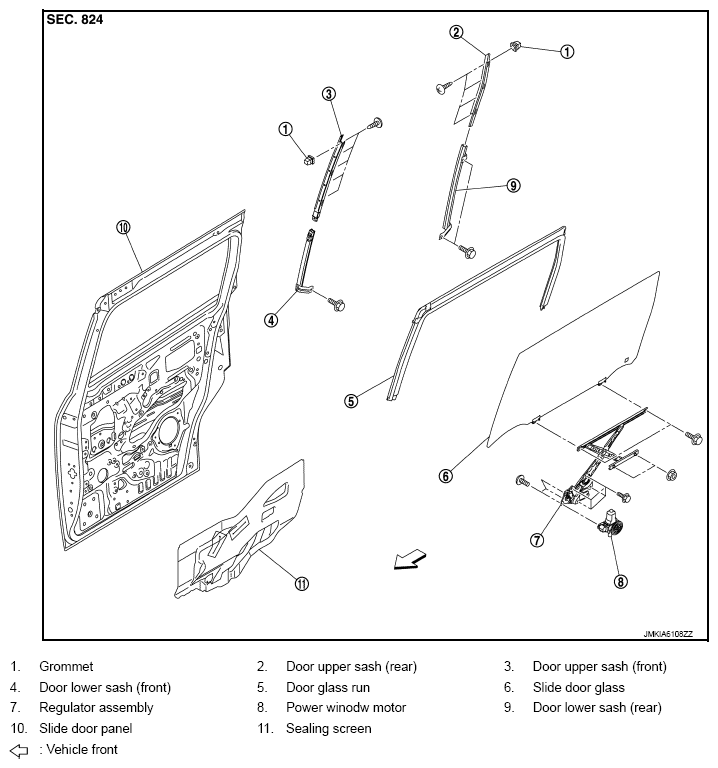

Fig 1: Exploded View Of Slide Door Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
