Exploded View

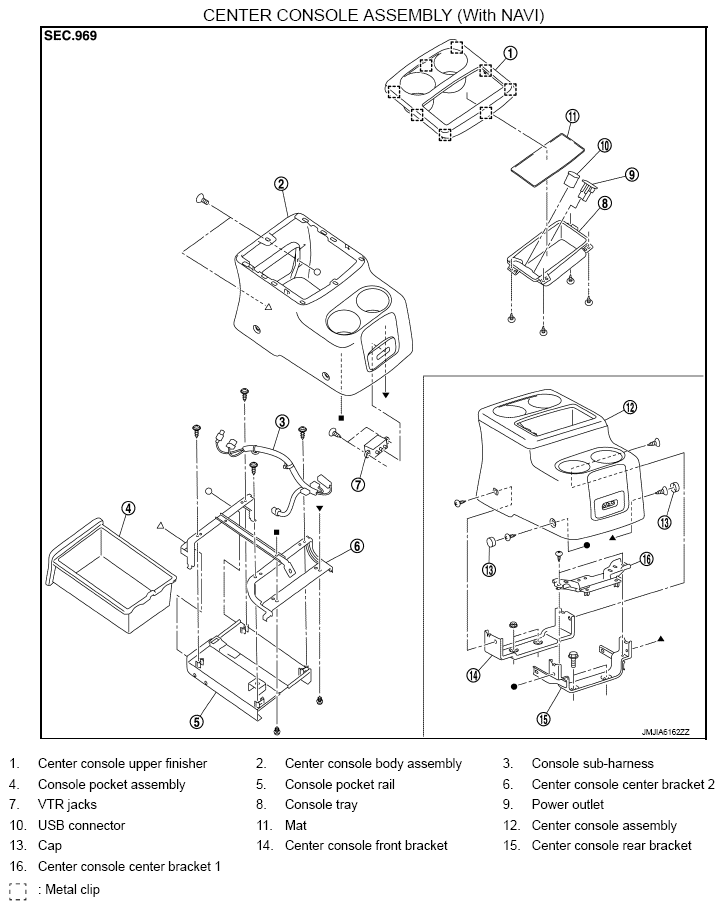

Fig 1: Exploded View Of Center Console Assembly (With NAVI)
G08172654Courtesy of NISSAN NORTH AMERICA, INC.

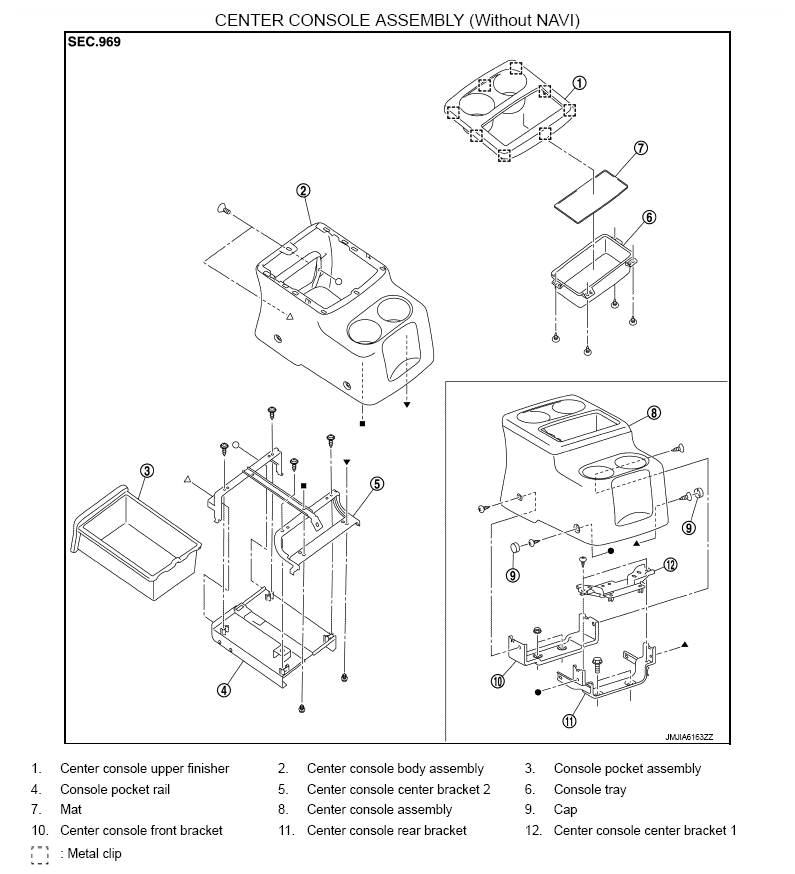

Fig 2: Exploded View Of Center Console Assembly (Without NAVI)
G08172655Courtesy of NISSAN NORTH AMERICA, INC.
