TRANSAXLE: Exploded View
TRANSAXLE: Exploded View

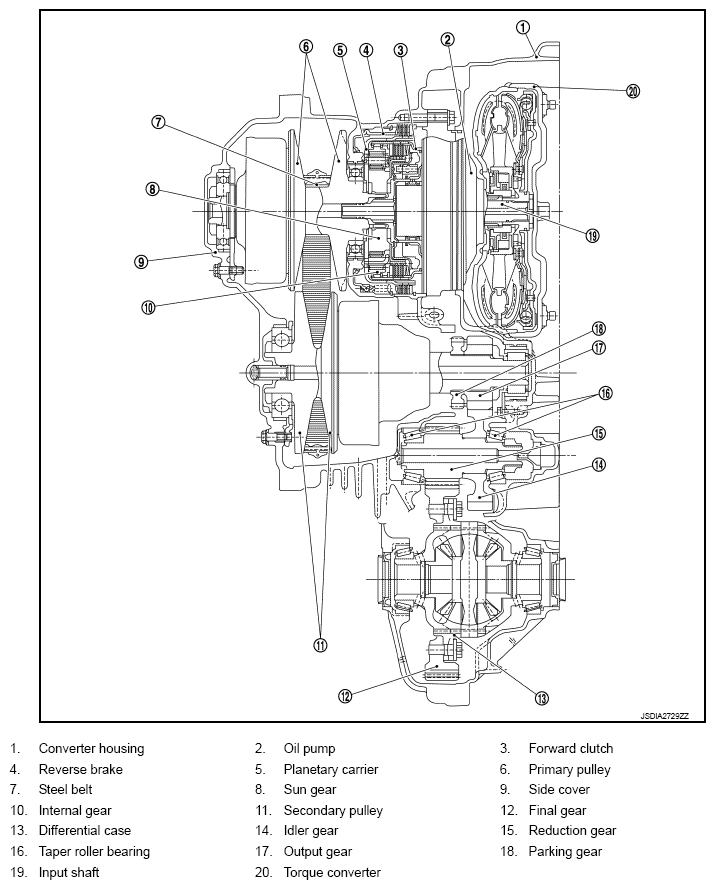

Fig 1: Exploded View Of Transaxle
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
