Nissan-Datsun
>>
2012
>>
Quest LE
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Secondary Speed Sensor
>>
Exploded View
Exploded View

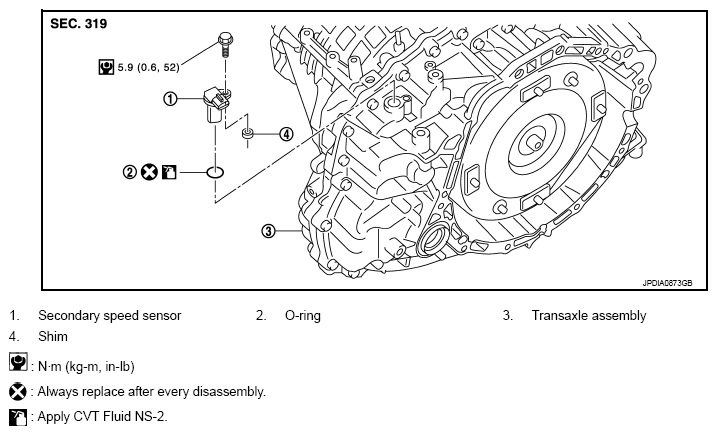

Fig 1: Exploded View Of Secondary Speed Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
