Component Parts Location

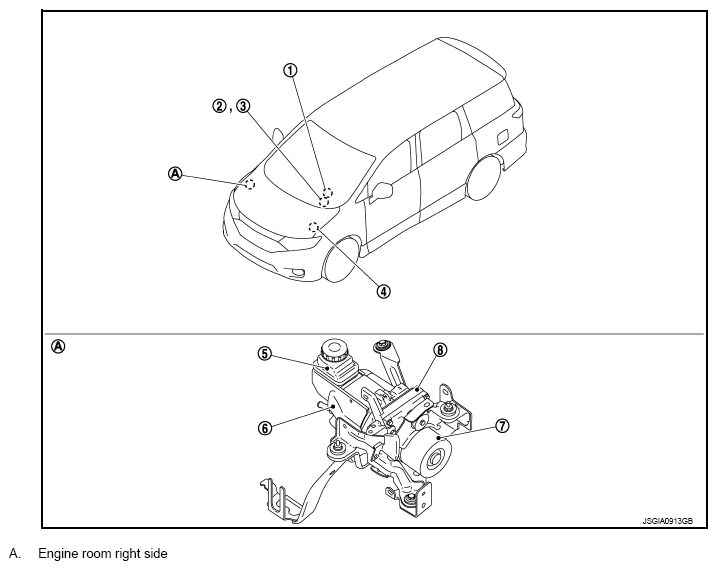

Fig 1: Steering Control System Component Parts Location
G08172146Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Steering angle sensor Transmits mainly the following signals to power steering control module via CAN communication.
  • Steering angle sensor signal
2. Combination meter Transmits mainly the following signals to power steering control module via CAN communication.
  • Vehicle speed signal

Refer to "METER SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module.
3. Hydraulic pump electric power steering system warning lamp (In combination meter) "HYDRAULIC PUMP ELECTRIC POWER STEERING SYSTEM: SYSTEM DESCRIPTION "
4. ECM Transmits mainly the following signals to power steering control module via CAN communication.
  • Engine status signal

Refer to "ENGINE CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
5. Power steering oil pump assembly Reservoir tank "POWER STEERING OIL PUMP ASSEMBLY "
6. Power steering oil pump
7. Power steering motor
8. Power steering control module
