Board-On Lift

WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Check vehicle is empty when lifting.

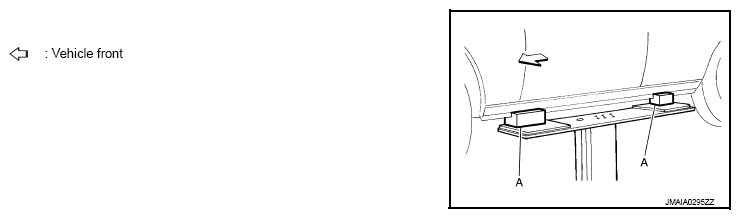

The board-on lift attachment (A) set at front end of vehicle should be set on the front of the sill under the front door opening.
Position attachments at front and rear ends of board-on lift.

Fig 1: Identifying Board-On Lift Attachments
Courtesy of NISSAN MOTOR CO., U.S.A.

Size of attachment L: 200 mm (7.87 in), W: 90 mm (3.54 in), H: 110 mm (4.33 in)

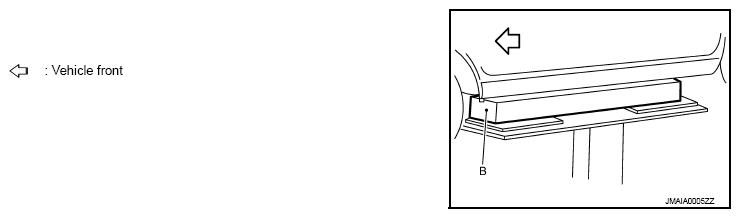

When using lift attachment (B), set lift attachment so that its width center contacts to side sill as shown in the figure.

Fig 2: Identifying Lift Attachment
Courtesy of NISSAN MOTOR CO., U.S.A.

Size of attachment L: 1400 mm (55.12 in), W: 120 mm (4.72 in), H: 100 mm (3.94 in)
