System Application*1

WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

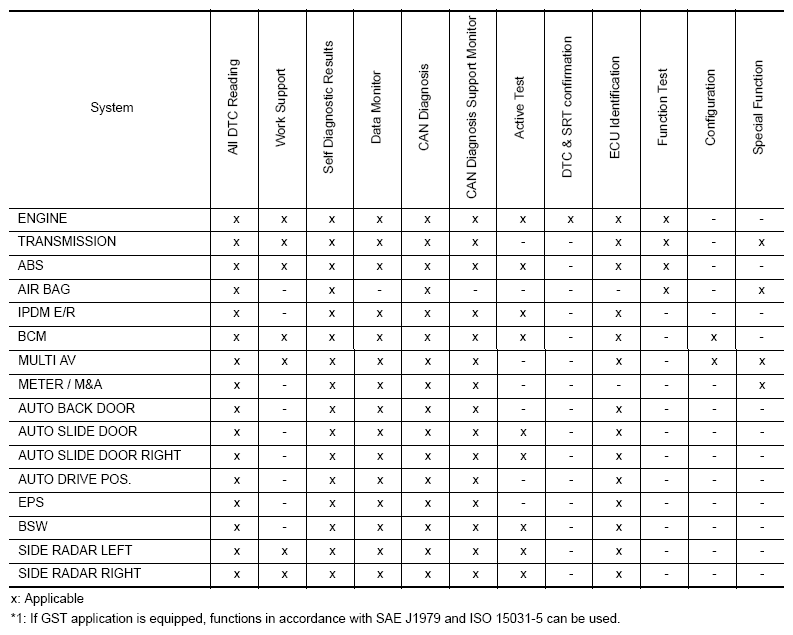

Fig 1: System Application Chart
G07052614Courtesy of NISSAN MOTOR CO., U.S.A.
