VQ40DE Models

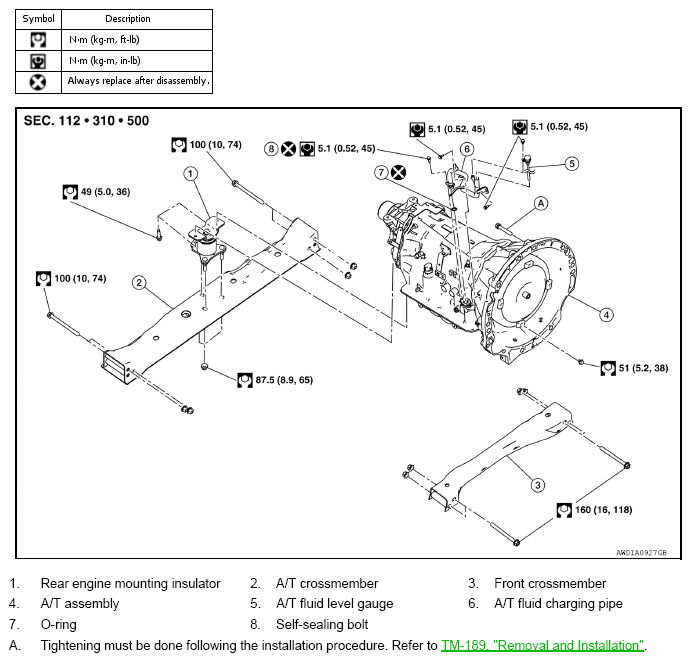

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications - VQ40DE Models

G08436177

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
