Exploded View

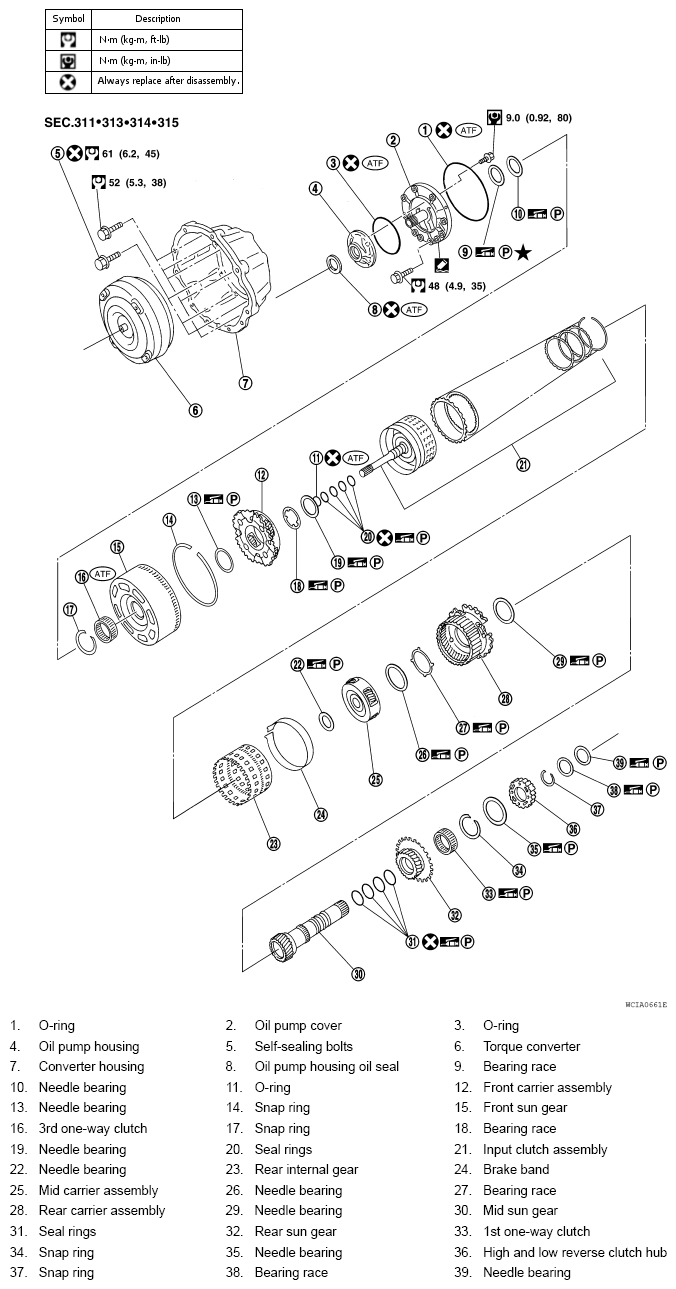

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications - SEC 311, 313, 314, 315

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

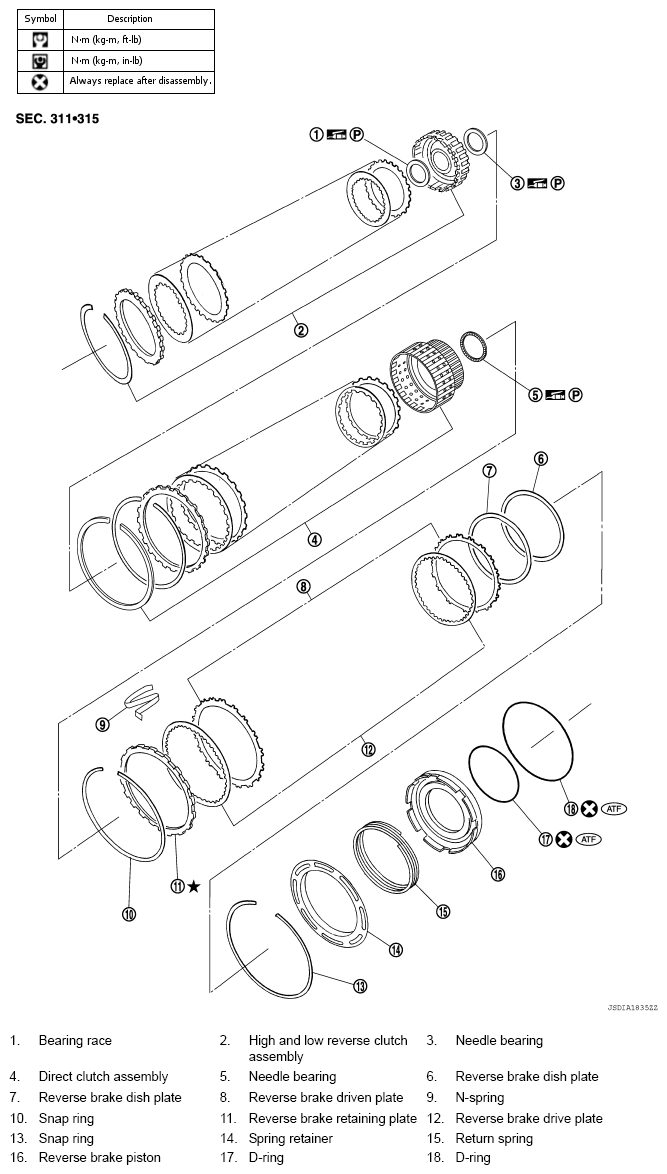

Fig 2: Exploded View Of Transmission Assembly - SEC 311, 315

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

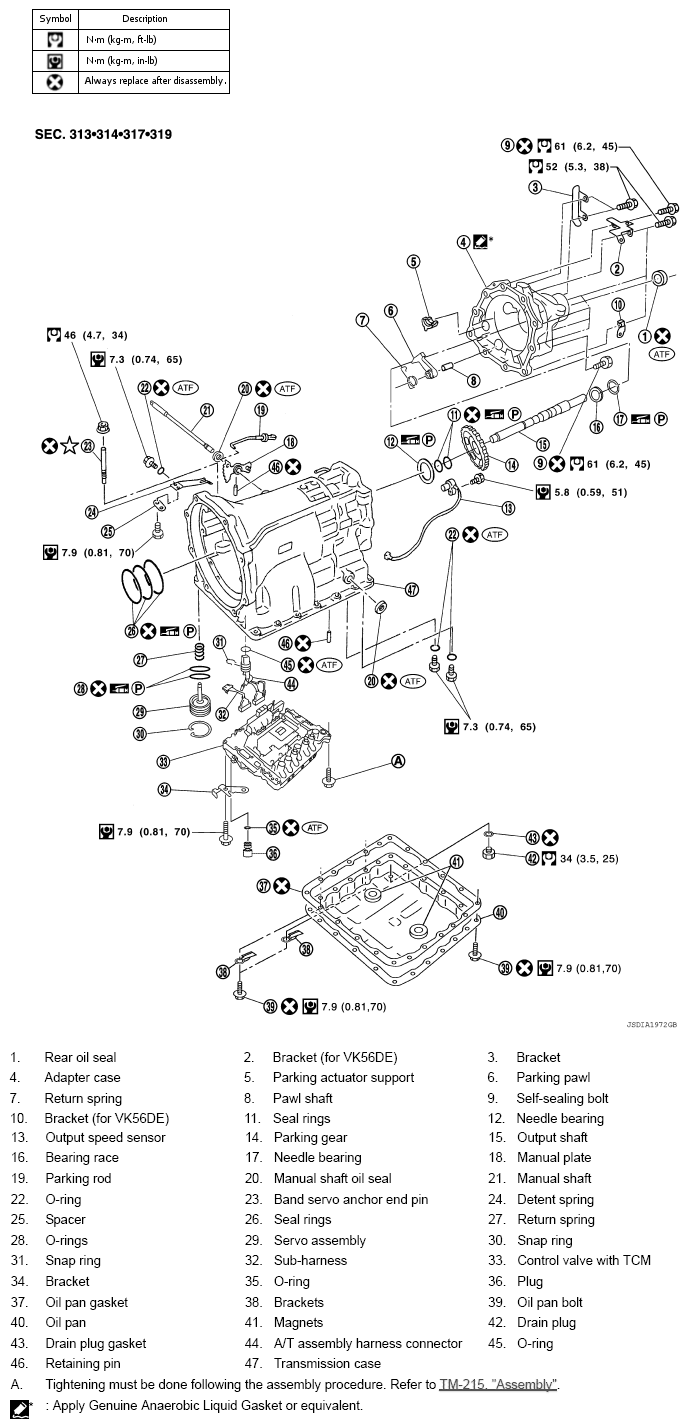

Fig 3: Exploded View Of Transmission Assembly With Torque Specifications - SEC 313, 314, 317, 319

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
