Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension
>>
Removal And Installation
>>
Coil Spring And Shock Absorber
>>
Exploded View
Exploded View

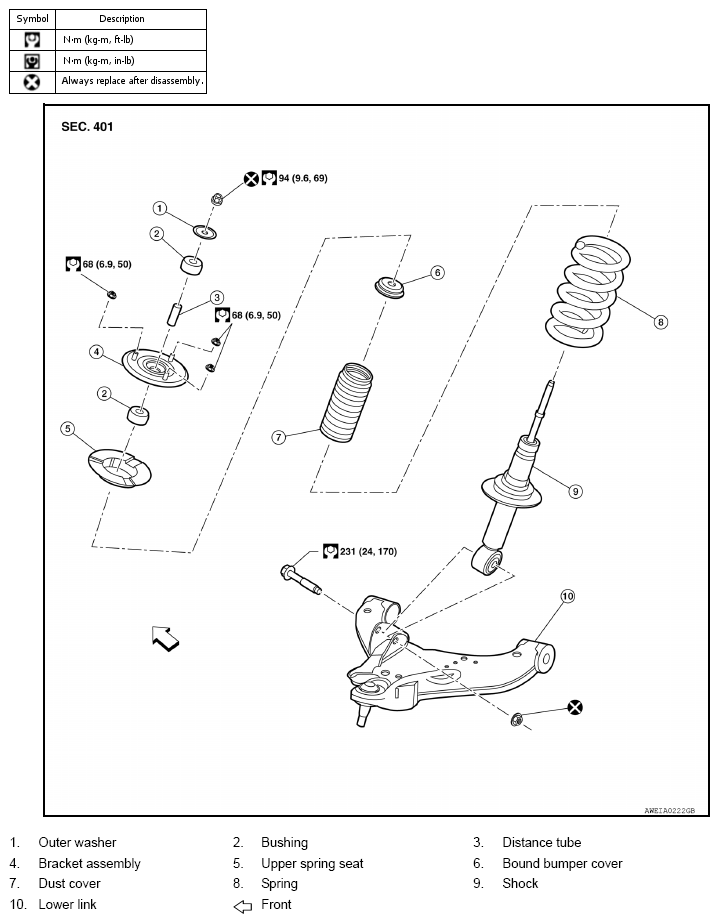

Fig 1: Exploded View Of Coil Spring And Shock Absorber With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
