Ignition Timing: Inspection

CHECK IGNITION TIMING

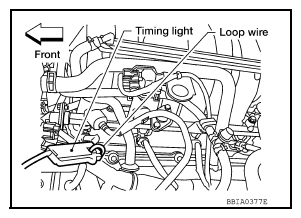

1. Attach timing light to loop wires as shown.

  Fig 1: Identifying Timing Light And Loop Wires
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  INSPECTION END

  Fig 2: Checking Ignition Timing
  Courtesy of NISSAN NORTH AMERICA, INC.
