Removal and Installation: Removal

Disconnect the EVAP control system pressure sensor electrical connector (A).

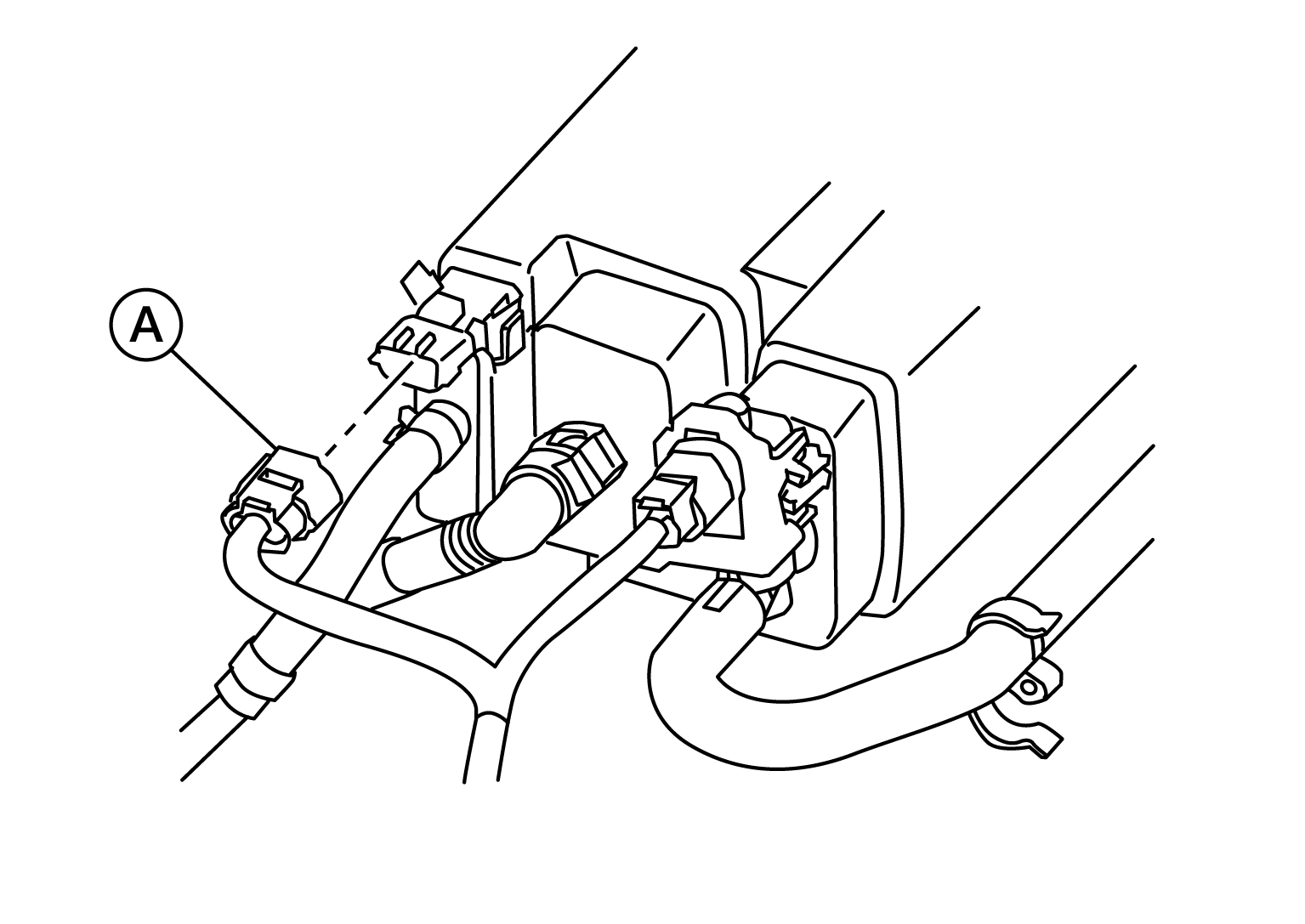

Fig 1: Identifying EVAP Control System Pressure Sensor Electrical Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Release the locking tabs (A) and remove the EVAP control system pressure sensor (1) and O-ring (2).
CAUTION: Discard the O-ring. Do not reuse O-ring.

Fig 2: Identifying EVAP Control System Pressure Sensor, Locking Tabs And O-Ring
Courtesy of NISSAN NORTH AMERICA, INC.
