Connector Terminal Identification

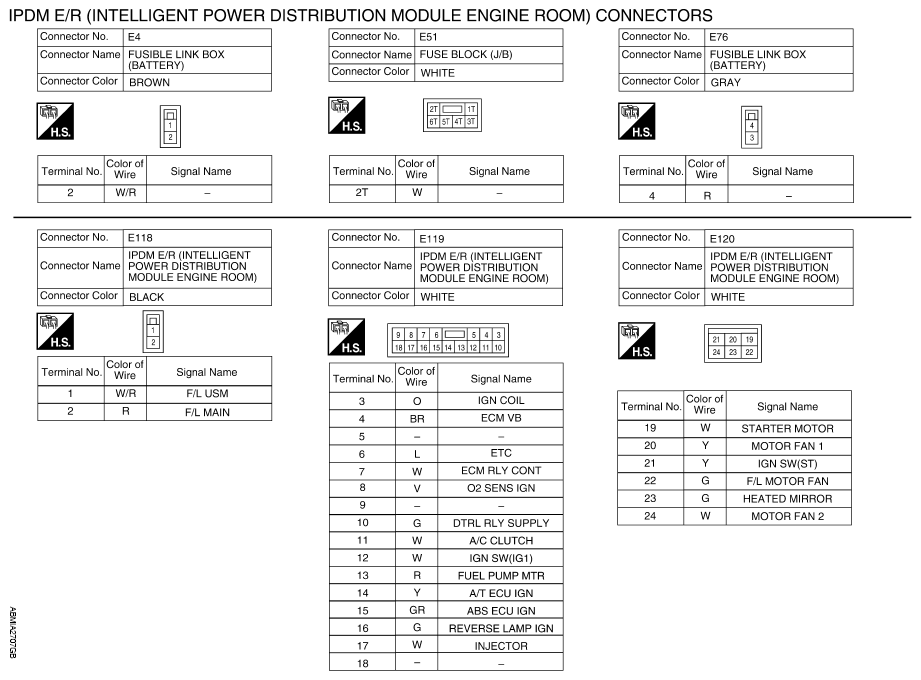

Fig 1: Identifying Intelligent Power Distribution Module Engine Room Connectors (1 Of 2)
G08160729Courtesy of NISSAN NORTH AMERICA, INC.

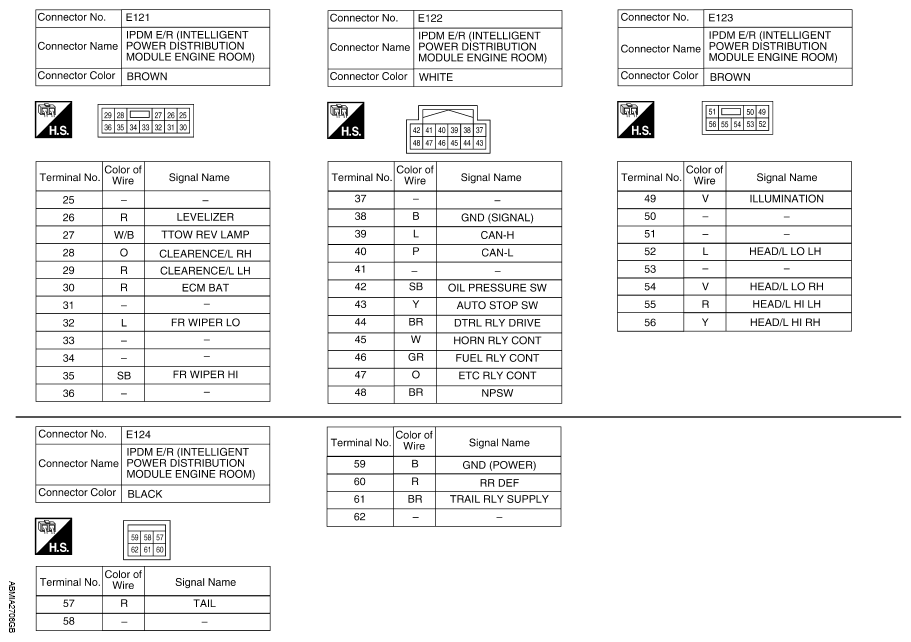

Fig 2: Identifying Intelligent Power Distribution Module Engine Room Connectors (2 Of 2)
G08160730Courtesy of NISSAN NORTH AMERICA, INC.
