Brake Control System (VDC/TCS/Abs)
>>
Wiring Diagram
>>
Brake Control System
>>
Connector Terminal Identification
Connector Terminal Identification

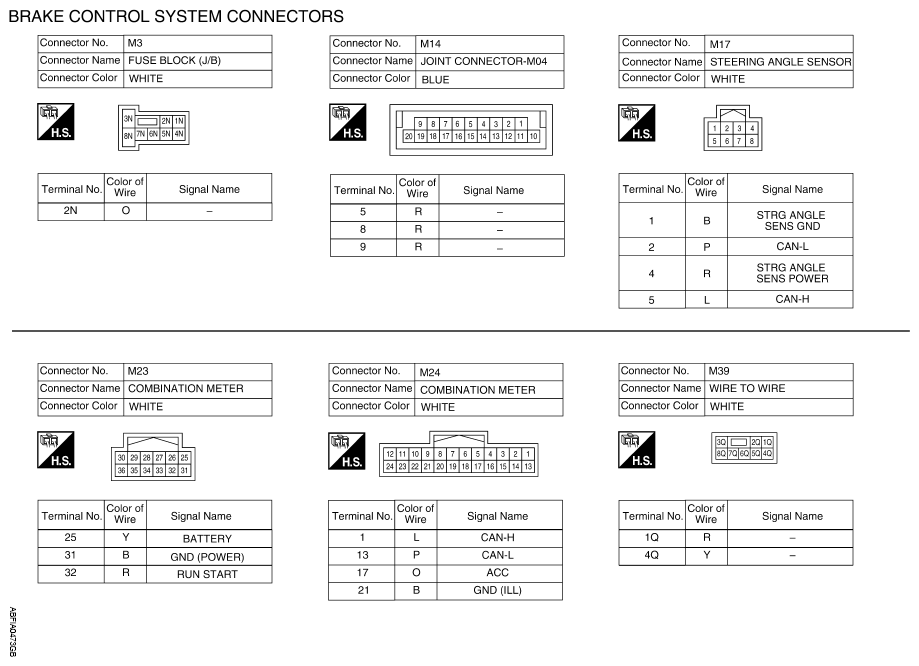

Fig 1: Identifying Brake Control System Connectors (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

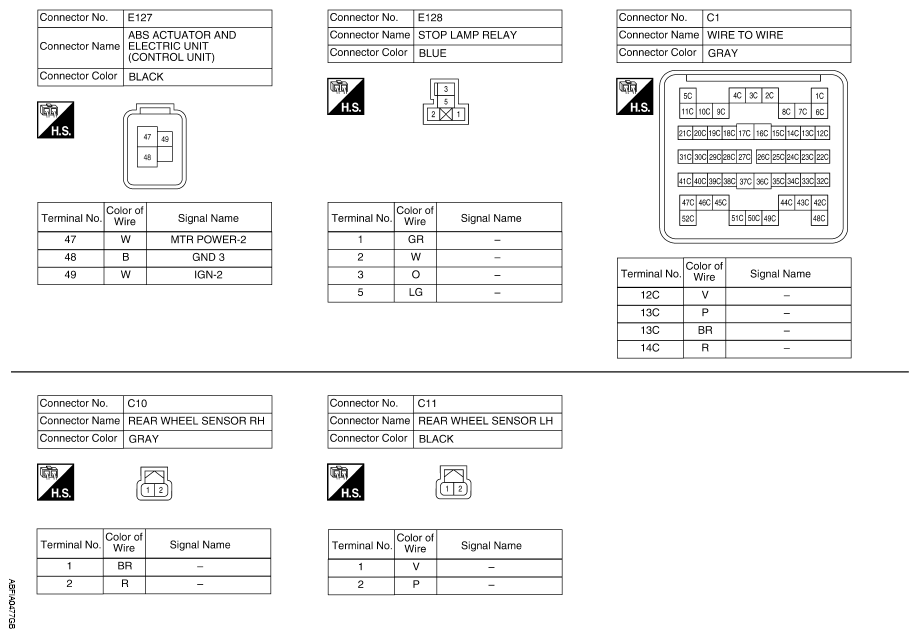

Fig 2: Identifying Brake Control System Connectors (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

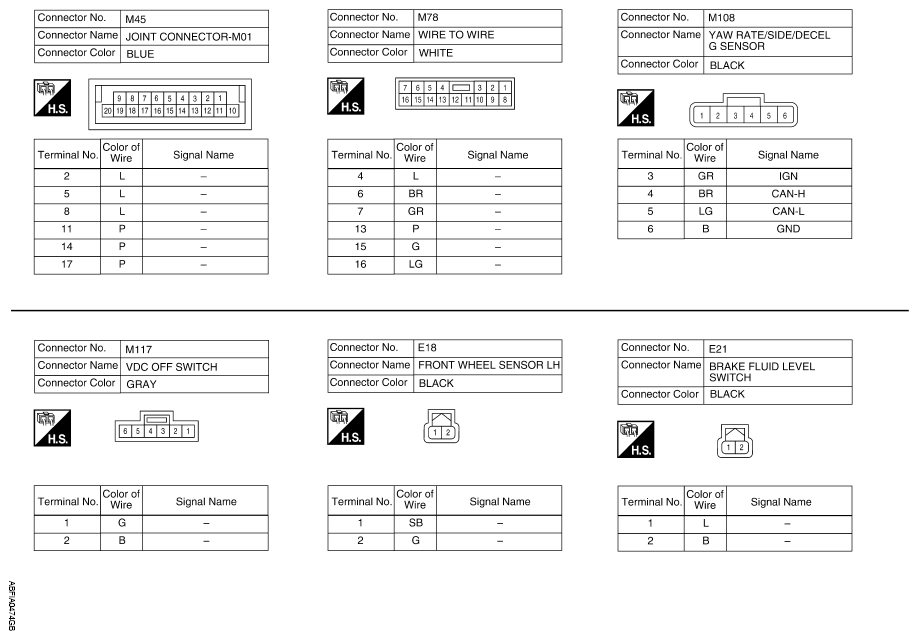

Fig 3: Identifying Brake Control System Connectors (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

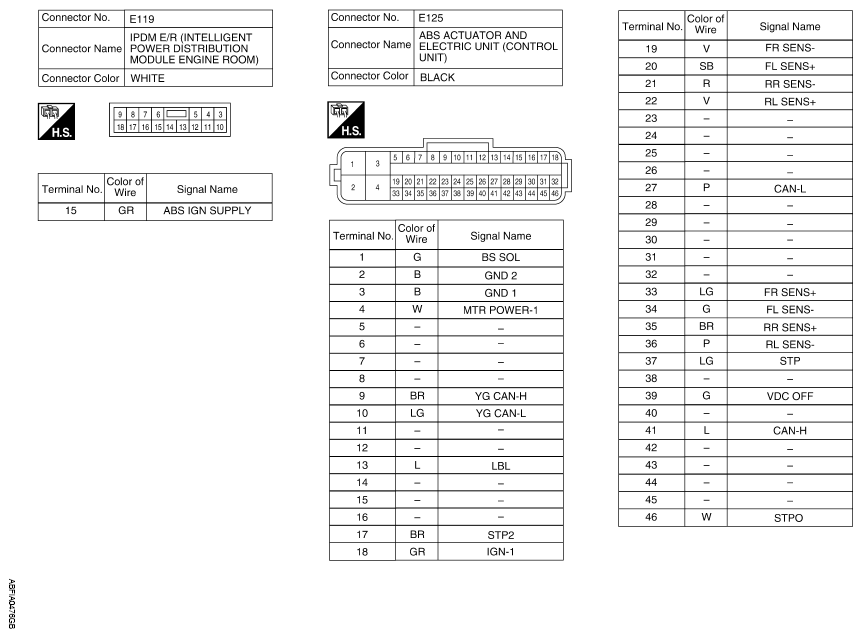

Fig 4: Identifying Brake Control System Connectors (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

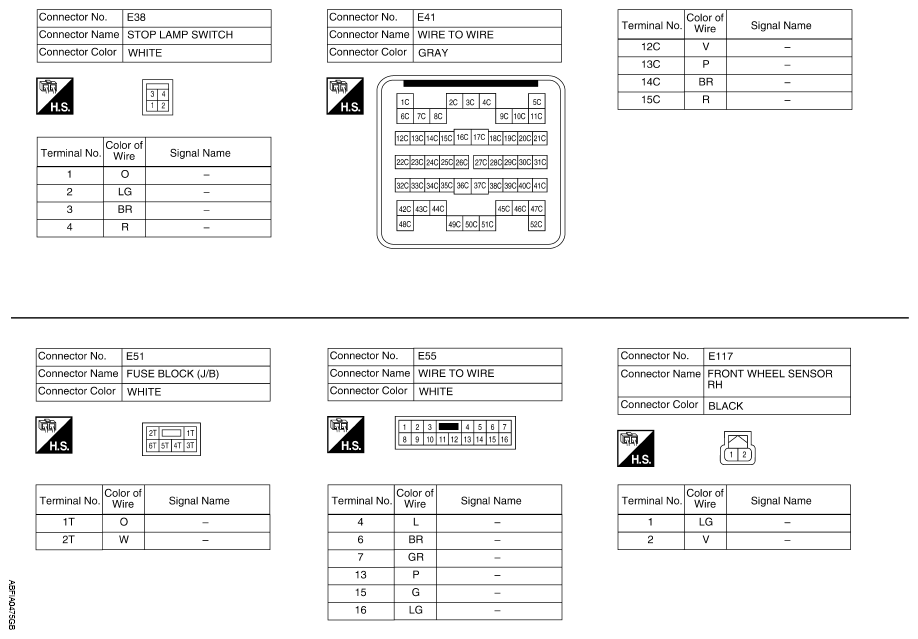

Fig 5: Identifying Brake Control System Connectors (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
